Introducing Inverto’s Home Gateway, using the latest GPON technology with ultra-broadband access to provide the best Triple-Play user experience (Data, VoIP and IPTV) throughout the home. Compliant with ITU G.984 GPON and interoperable with several major OLT brands, it offers 4x LAN ports with auto-adapting (FE/GbE) and Wi-Fi 5 (802.11ac) 2x RJ-11 VoIP ports plus full-featured Routing and Firewall for secure wireless transmission and authentication.

Main Features

  • ITU G.984 GPON compliant optical Interface
  • Supporting triple-play services include Voice, Data, and Video (IPTV)
  • Fully featured 2x2 MU-MIMO Wi-Fi 5 router and firewall, secure wireless transmission and authentication
  • 4x Auto-sensing 1000 Base-T Ethernet Interface (RJ-45), 1x or 2x VoIP Interface (RJ-11), WPS Button
  • Supporting remote management over TR069 and OMCI

For our complete OneNet Broadband range catalogue, Please click here

Frequency range 2.4 GHz and 5 GHz
Transmit power EIRP +24.8 dBm (MCS0, 2.4 GHz, HT20)
+22.8 dBm (MCS7, 2.4 GHz, HT40)
+24.5 dBm (MCS0, 5 GHz, VHT20)
+22.5 dBm (MCS9, 5 GHz, VHT80)
Spatial streams 2 for 2.4 GHz, 2 for 5 GHz
Receive levels -86 dBm 802.11n (MCS0, 2.4GHz HT20)
-57 dBm 802.11ac (MCS9, 5GHz VHT80)
Antennas 2.4GHz: 2Tx2R, 5GHz: 2Tx2R
Networking chipset RLX5281 500 MHz (with VoIP support)
System Dual core MIPS InterAptiv 900 MHz CPU, 256 MB SDRAM, 128 MB NAND, Linux OS
Optical input 1x SC/APC (SC/UPC optional)
Ethernet 4x 1.0 GbE ports (auto-sensing 10/100/1000 Base-T, RJ-45)
VoIP 1x Tel RJ11 port (2nd port optional)
USB 1x USB 2.0
Power input 1x DC in
1x Reset button, 1x WPS, 1x On/Off button
LED indicators Power, GPON, Wi-Fi 2.4G & 5G, WPS, Ethernet, VoIP Tel, USB
GPON standard and features
ITU-T G.984.x
Bandwidth: US 1.244 Gbps, DS 2.488 Gbps
32 T-CONTs and 128 GEM ports
Forward Error Corrections
Port/VLAN Binding
Dying Gasp
Network standards and features
802.1Q VLAN
IGMP v1/v2/v3
IEEE 802.11 a/b/g/n/11ac
PHY Rates:
- 2.4G 40 MHz 300 Mbps
- 5G 80 MHz 866.7 Mbps
Wi-Fi Protected Setup (WPS)
WEP: 64- or 128-bits Key Length
Auto Rate Adaptive
Auto Channel Selection
QoS: Wi-Fi Multimedia (WMM)
Wireless Distribution System (WDS)
Band Steering
EasyMesh R2
1x SIP Proxy
Call forwarding / Call waiting / Call transferring
3-way conference
FAX T.38
Codec G.711
Echo Line Cancellation
Power adapter input range 90-240 VAC 50-60 Hz
Unit Input power range 11-14 VDC, 1.5 A max.
Power consumption 15 W max.
Power saving features EEE and EEE+
Operating Temperature 0° C to 45° C (32° F to 113° F) @ 10% to 85% RH (non-condensing)
Storage Temperature -30° C to 60° C (-22° F to 140° F) @ 10% to 90% RH (non-condensing)
Certification EMC: CE/FCC, Safety: CE/FCC, ROHS, WFA

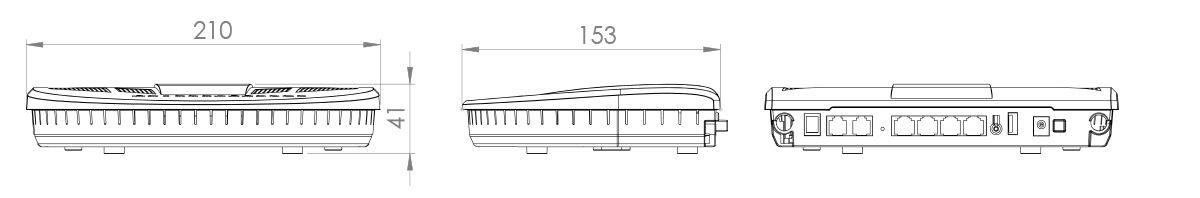

Dimensions 210 mm x 153 mm x 41 mm
Weight 261 g
Logistical info
Packaging dimensions (h x w x d) 24.2 cm x 23 cm x 5.2 cm
Packaging weight 0.388 kg
Quantity per carton 10
Carton dimensions (h x w x d) 52.5 cm x 34.3 cm x 34.3 cm
Carton weight 4.43 kg
Quantity per pallet 640
