The OneNet™ MoCA 2.5 CNU (Coax Network Unit) is installed at the subscribers premise; fed from the MoCA Access Controllers provide the high-speed connectivity.
Main Features
For our complete OneNet™ Broadband range catalogue, Please click here
Main Features
- 1x High speed MoCA 2.5 interface port
- 1x RF Loop-through port for overlaid legacy Analog/Digital TV signals
- 1x Ethernet port - 1GbE
- Quality of Service over Coax (QoX)
- Small footprint: CNU can be installed behind the TV
- Low power consumption
For our complete OneNet™ Broadband range catalogue, Please click here
| Coax MoCA 2.5 | |
|---|---|
| 1x MoCA 2.5 Band D extended (default): 1125-1625 MHz (F-type) | |
| Without Reverse Power, to be used with non-RPF MoCA Access Controllers (items 6465 & 6466) | |
| 1x RF Loop-through out port for overlaid legacy Analog/Digital TV signals | |
| Quality of Service over Coax | |
| Networking | |
| 1x 1GbE Phy Ethernet NBASET IEEE 802.3ab | |
| Multiple VMS (Virtual Modem Stack) integrated in the MoCA Access Controllers | |
| P2P/P2MP Coax OFDM pipe to each Subscriber Drop Cable | |
| Configurable isolated VLANs with BW control for each Subscriber Drop Cable, IEEE 802.1q | |
| IGMP v2 snooping (IPTV) | |
| QoS 802.1p, ToS, UDP/TCP port | |
| Max 8 MAC Host addresses | |
| System | |
| Up to 31 CNUs cascaded over a single MoCA2.5 line | |
| 12VDC <5W, Power Saving mode | |
| Small foot print - can be installed behind the TV | |
| Sharing a single Coax Segment across multiple CNUs (Max 31) requires a MoCA RF splitter ( 5 MHz-2.35 GHz) | |
| Temperature Range: 0 °C to 50 °C (@ 10% to 95% RH) | |
| Legacy RF overlay (optional) | |
| RF Overlay: 50 MHz -1 GHz @ 1540-1560 nm Band | |
| RF Pass-through Downstream | |

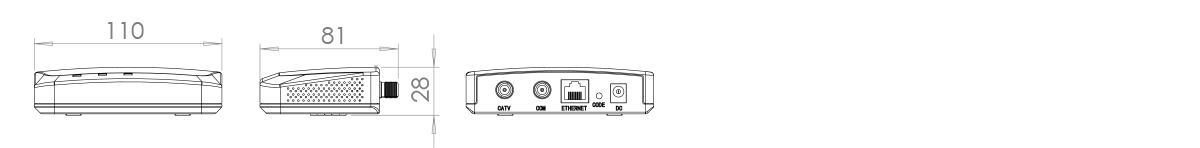

| Dimensions | |
| Dimensions | 110 mm x 81 mm x 28 mm |
