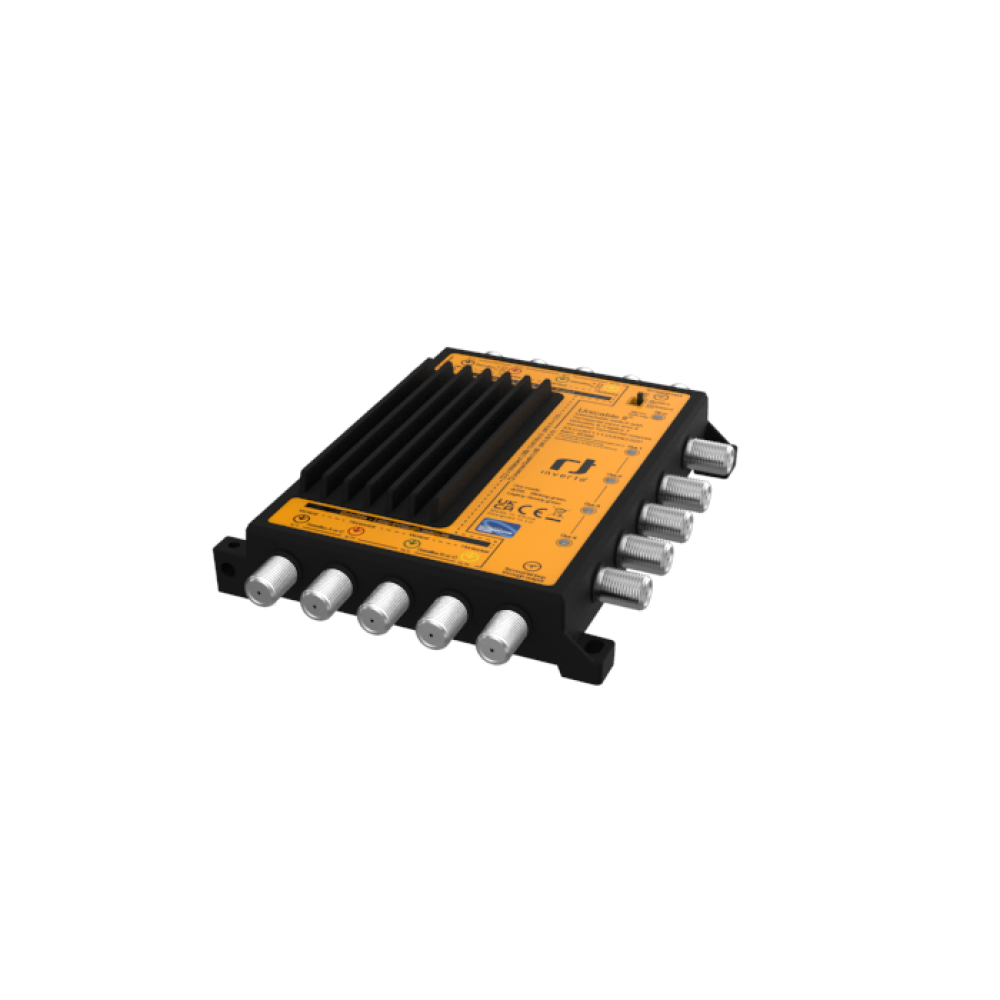

This Multiswitch unit connects to a Quattro or Wideband LNBs and offers a terrestrial input port to connect a terrestrial antenna and enable the distribution of satellite TV as well as DTT/DAB broadcasts at MDU/IRS installations. A manual switch selects whether the satellite inputs connect to a Quattro LNB or up to two Wideband LNBs for receiving up to two full satellite broadcasts. The loop-through trunk ports can be connected to cascade additional Multiswitch units.

The DC-input port of the Multiswitch unit powers the trunk lines which power the connected LNB and the built-in Terrestrial amplifier of the unit and of any other cascaded units. The Trunk power LED will turn green when the Trunk lines are powered.

The output ports are powered by the connected STBs enabling super low power consumption from the trunk lines and powering as many cascaded switches as possible using a single power supply unit. If a connected STB is not able to power its respective port, a power inserter can be utilized.

Each of the four STB output ports supports either Legacy or Unicable mode (auto-detect). The Unicable mode is compatible with either SatCR (Unicable, EN50494) or dCSS (Unicable II, EN50607) STB models and delivers 16 User Bands. The ports feature a status LED indicating their operational mode:

- Solid green = Legacy mode
- Blinking green = dCSS or SatCR mode
- Off = no voltage detected on the port (only terrestrial signal available on the port when the unit is powered)

All the four STB output ports combine the Terrestrial input with unity gain.

The unit configuration and RF parameters can be programmed with Inverto’s SatPal Controller device*

For Indoor and outdoor (IP54) installations.

Optional accessories (sold separately):
5958 Unicable II® Power Inserter, 5-2400MHz IDLU-PINS03-OOOOO-OBT
5639 19W Power Supply adapter for Unicable II® / Unifiber (EU plug) IDLU-ADPT01-19WOO-EPM
5582 65W Power Supply adapter for Unicable II® multiswitches (EU plug) IDLU-ADPT04-19342-EPM
5415 SatPal Controller IDLU-SPAL03-OOOBT-OPP
* The SatPal Controller device is not included and is sold separately.

Typical single household installation

Typical MDU/IRS building installation with two Wideband LNBs receiving two satellites

If sky service is required to be distributed, it should be connected over the Sat A position

Technical specifications
Frequency range: satellite Quattro LNB: 950 MHz ~ 2150MHz
Wideband LNB: 290 MHz ~ 2350MHz (LO=10.40 GHz)
Frequency range: terrestrial VHF 174-230 MHz
UHF 470-790 MHz
Inputs 4x Satellite IF inputs:
From 1x Quattro LNB or From up to 2x Wideband LNBs
1 x DTT/DAB input from Terrestrial antenna
Outputs 4 Satellite IF + 1 TERR
4 x dCSS (16 UBs) / SatCR / Legacy
auto-detect ports with combined Terrestrial

Input power range -36 dBm to -4 dBm (72 dBuV to 104 dBuV) - Aggregated
Output signal level (AGC) dCSS/Unicable - UB power: -25 dBm (83 dBuV) ±2 dB
Legacy - average TP power: -25 dBm (83 dBuV) ±4 dB

RF isolation: satellite/terretsrial (input) 30 dB min.
RF isolation: satellite/satellite (input) 30 dB min.
RF isolation: satellite ch/ch (UBs, output) 30 dB min.

Loop-through loss: satellite
3.5 dB max.
Loop-through loss: terrestrial 0 ±1 dB gain
Gain: Unicable II™ (dCSS) output (out of AGC) >25 dB
Gain: terrestrial signal 0 ~ 5 dB
Integrated phase noise 1.5 degrees max.

Control protocols EN50494 (Unicable, SatCR), EN50607 (Unicable II, dCSS), DiSEqC1.0/2.0,
13 V/18 V + 0 kHz/22 kHz
Legacy port switching V/L => 13 V/0 kHz , V/H => 13 V/22 kHz
H/L => 18 V/0 kHz , H/H => 18 V/22 kHz
Input/Output impedance 75 Ω (F-type)
Input/Output VSWR 2.5 : 1
LNB power supply 500 mA max. @ 18 VDC
Power consumption Output ports (16 active UBs, supplied by the connected STB): 365mA max. @11-20V DC
DC in / trunk port: 100mA max. @18V DC (no LNB load)
Working temperature -20 °C ~ +50 °C
IP protection IP54

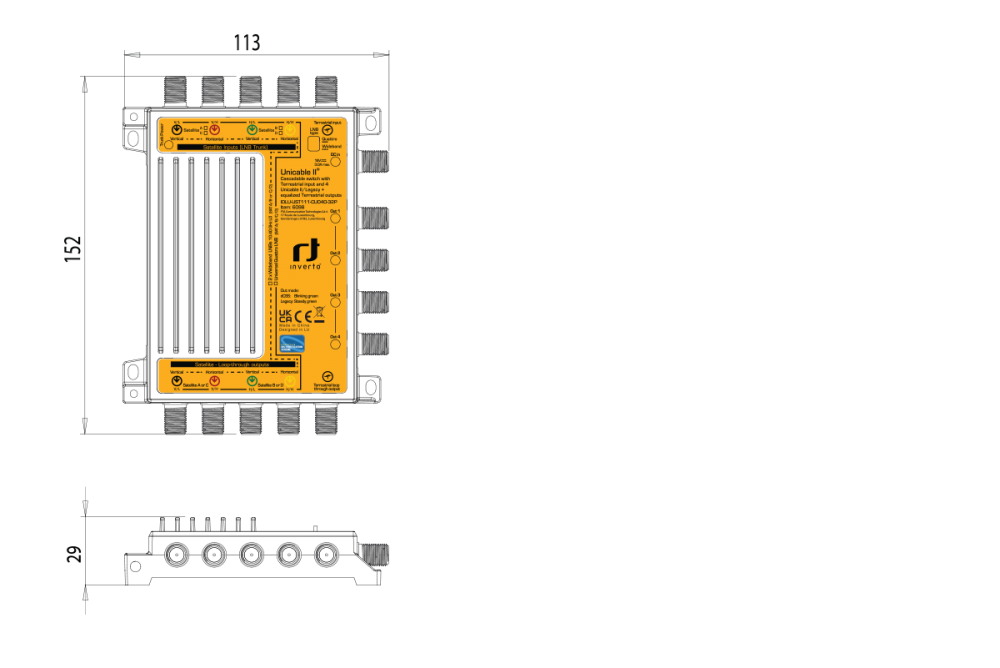

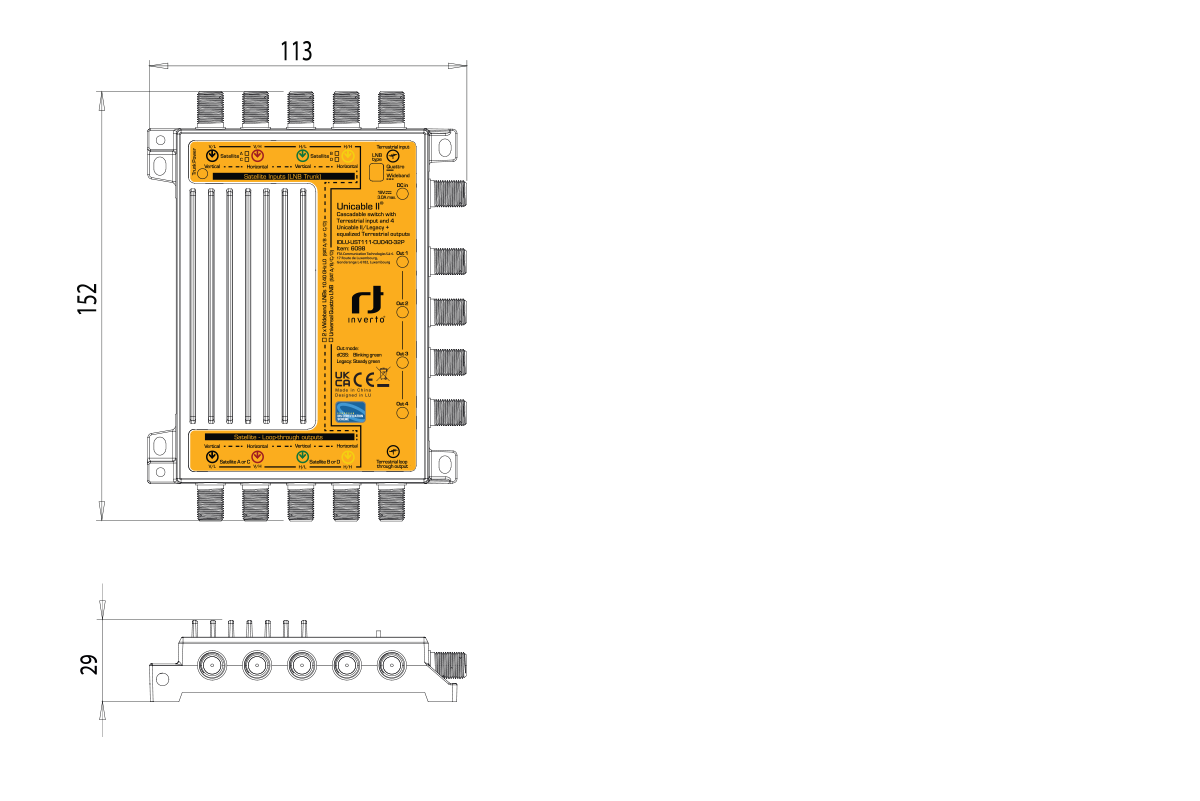

Product dimensions (W x D x H) 15.2 cm x 11.3 cm x 2.9 cm
Weight 280 g

Unicable II™ (dCSS) port specifications
User band (channel) bandwidth 46 MHz, programmable 10 MHz ~ 80 MHz
User band (channel) gain ripple 3 dB max.
User band (channel) frequencies Default Unicable II™ dynamic user bands per output port:
CH1: 1210MHz EN50607+EN50494 (dCSS+SatCR)
CH2: 1420MHz EN50607+EN50494 (dCSS+SatCR)
CH3: 1680MHz EN50607+EN50494 (dCSS+SatCR)
CH4: 2040MHz EN50607+EN50494 (dCSS+SatCR)
CH5: 985MHz EN50607+EN50494 (dCSS+SatCR)
CH6: 1050MHz EN50607+EN50494 (dCSS+SatCR)
CH7: 1115MHz EN50607+EN50494 (dCSS+SatCR)
CH8: 1275MHz EN50607+EN50494 (dCSS+SatCR)
CH9: 1340MHz EN50607 (dCSS)
CH10: 1485MHz EN50607 (dCSS)
CH11: 1550MHz EN50607 (dCSS)
CH12: 1615MHz EN50607 (dCSS)
CH13: 1745MHz EN50607 (dCSS)
CH14: 1810MHz EN50607 (dCSS)
CH15: 1875MHz EN50607 (dCSS)
CH16: 1940MHz EN50607 (dCSS)

* Unused ports need to be terminated by 75 Ohm DC-blocked terminators
Logistical info
Packaging dimensions (W x D x H) 15.5 cm x 11.8 cm x 3.5 cm
Packaging weight 0.357 Kg
Quantity per carton 30
Carton dimensions (W x D x H) 48.2 cm x 24.9 cm x 19.5 cm
Carton weight 10.7 Kg
Quantity per pallet 840
