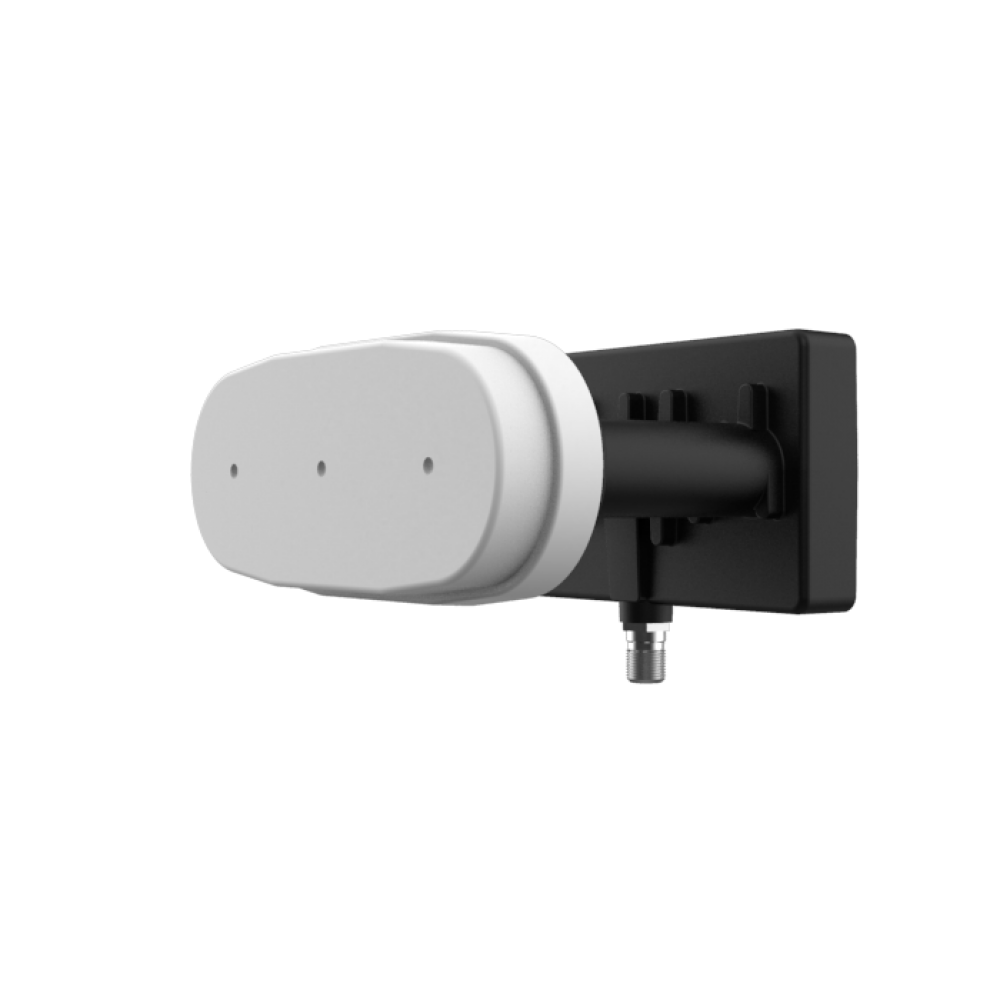

This Triple Feed LNB is a monoblock LNBF for Ku-band satellite reception from orbital positions 13˚E, 16˚E and 19.2˚E in Central European countries. It is intended to be installed with commercially available 85cm offset satellite dish antennas with F/D = 0.6.
The LNB receives satellite broadcasts with horizontal and vertical polarizations within the 10.7 ~ 12.75 GHz frequency range. It provides one switchable IF port with 950 ~ 2150 MHz output frequency range. The output F-type port carries also power supply and control signals. DiSEqC 1.0 commands allow switching the output to a particular band and orbital satellite position.
The DiSEqC satellite positions are the following: "Sat A" corresponds to 16°E (the middle feed), "Sat B" to 13°E and "Sat C" to 19.2°E. As long as no DiSEqC command has been received, the default feed is of the "Sat A" position (i.e. 16°E). The LNB comprises three feeds, one for each satellite orbital position.
The LNB is supplied with a 40 mm plastic ring adapter to allow mounting onto a 40 mm LNB holder.
The DISEqC positions (A/B/C) and the respective orbital positions (16°E/13°E/19.2°E) are marked on the LNB housing.
| Technical specifications | |
|---|---|
| Low band input frequency range | 10.7 GHz ~ 11.7 GHz |
| Low band output frequency range | 950 MHz ~ 1950 MHz |
| Low band LO frequency |
9.75 GHz |
| High band input frequency range |
11.7 GHz ~ 12.75 GHz |
| High band output frequency range | 1100 MHz ~ 2150 MHz |
| High band LO frequency |
10.6 GHz |
| Noise figure |
1.0 dB max. |
| LO temperature drift | ±1.0 MHz max. |
| LO initial accuracy | ±0.5 MHz max. |
| LO phase noise @ 1 kHz | -60 dBc/Hz |
| LO phase noise @ 10 kHz |
-80 dBc/Hz |
| LO phase noise @ 100 kHz | -90 dBc/Hz |
| Conversion gain |
55 dB ~ 65 dB min. |
| Gain variation (over full band) | 6 dBpp max. |
| 1 dB compression point (@ output) | 0 dBm min. |
| Control, Satellite A/B/C/D Selection |
DiSEqC 1.0: Sat A* = Eutelsat 16°E (middle feed), Sat B = Hotbird 13°E, Sat C = ASTRA 19.2°E * Default Satellite Reception |
| Control, Polarization and band selection |
Horizontal polarization: 18 VDC Vertical polarization: 13 VDC Low band: 0 kHz High band: 22 ±4 kHz |
| Cross polarization isolation | 22 dB min. |
| Output VSWR |
2.5 : 1 max. |
| In band spurious level | -60 dBm max. |
| Current consumption |
150 mA max. (10 VDC ~ 20 VDC) |
| Operating temperature |
-30 °C ~ +60 °C |
| Output impedance |
75 Ω (F-type) |
| Output connector type |
F-Type (female) |
| Recommended Dish Size | 85 cm |
| Dish F/D ratio | F/D = 0.6 |
| Weight | 335 g |
| Logistical info | |
| Packaging dimensions (W x D x H) | 13,7 cm x 8,5 cm x 10,8 cm |
| Packaging weight | 0,375 kg |
| Quantity per Carton | 32 pcs |
| Carton dimensions (W x D x H) | 45 cm x 36 cm x 29,5 cm |
| Carton weight | 0.7 kg |
| Quantity per pallet | 1152 pcs |
Specifications
Images

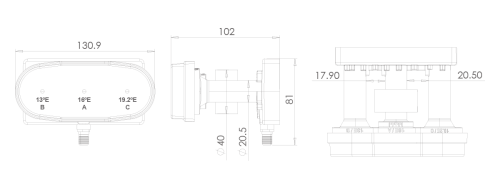

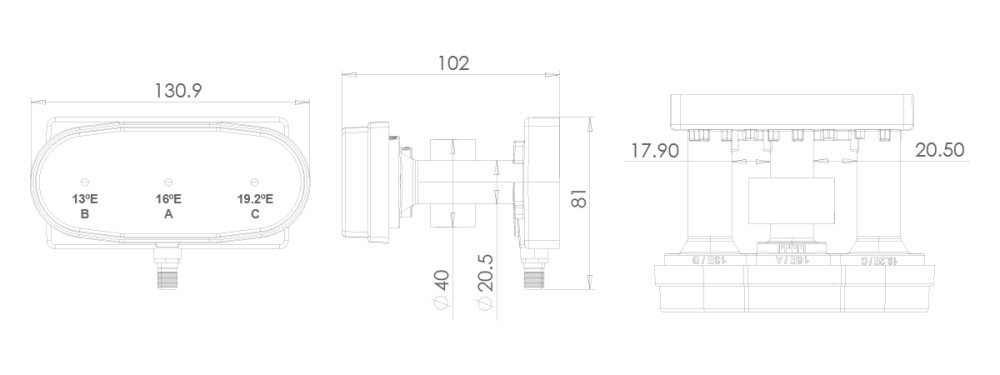

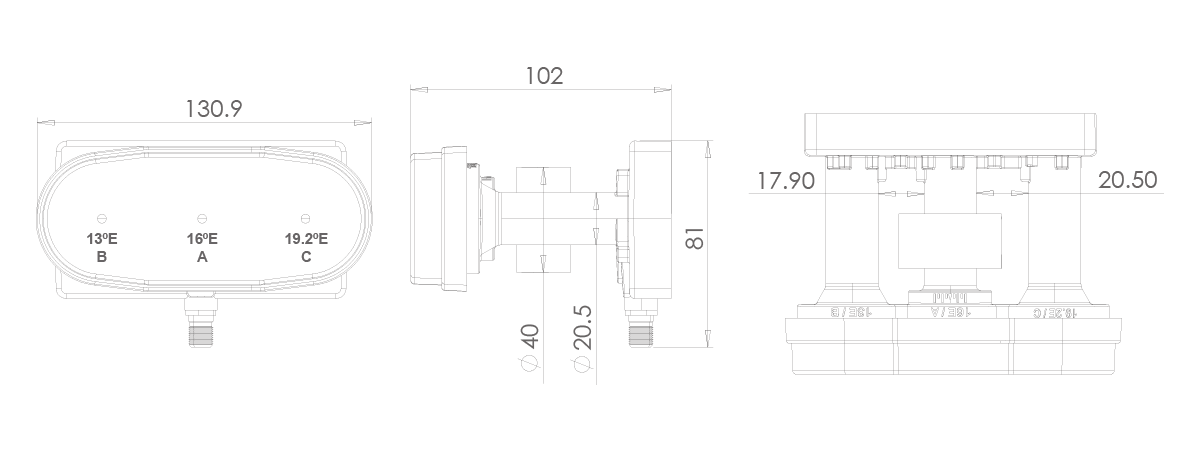

Drawings
Declaration of Conformity (CE)
Declaration of Conformity (UKCA)
FAQ
Q: What is an LNB?
A:
An LNB - Low Noise Block (also called an LNC- Low Noise Converter), it is used for communications (broadcast) satellite reception. The LNB is usually affixed either in or on the satellite dish and its purpose is to collect and amplify the satellite signal received from the dish and then down convert the signal to lower more manageable IF frequency which can then be carried over standard coaxial cabling to the receiver.
Q: What is a feedhorn?
A:
The feedhorn is a part of the LNB and works like a directional horn. Its function is to capture the signals reflected from the dish and to shield the LNB from receiving extraneous radiation from other sources. These collected signals are then passed form the horn to the electronics within the LNB.
Q: What is the difference between a Quad and Quattro LNB?
A:
A quad or quad switch LNB is an LNB where the multi switch is integrated into the LNB and gives 4 independent output ports for the connection of 4 receivers. A Quattro LNB has 4 outputs and each of the output’s is set to one of the differing polarities, the 4 outputs are V/L, V/H, H/L & H/H. A Quattro LNB is normally used to feed a multiswitch which then allows the distribution of the signal to any number of satellite receivers. All four outputs of a Quattro LNB are marked accordingly with V/L, V/H, H/L & H/H to avoid confusion and malfunctions when connecting to the multiswitch.
Q: What is the HsQuare Technology?
A:
HsQuare is a unique waveguide technology which may be coupled with a slightly larger feed horn design to deliver better RF performances compared with common circular microwave waveguides.
Q: What is a monoblock LNB?
A:
This design consists of two independent LNBs in a single housing and allows a user the potential of receiving the signal from two different satellites which are at slightly different orbital opposition from a single dish installation. The switching between the satellitesis achieved via the use of DiSEqC signals or Toneburst (Mini DiSEqC). Monoblock LNB’s are available mostly for satellites with a fixed 4.3° or 6° spacing and the range covers Ku band monoblock switch single, twin and quad outputs.
Example where a 6° monoblock LNB could be used is for the reception of ASTRA 1 (19.2° East) and Hotbird (13° East) or with 4.3° distance for the reception of ASTRA 1 (19.2° East) and ASTRA 3 (23.5° East).
Q: Why can I receive only one satellite with my monoblock LNB?
A:
For dual satellite reception the dish is normally initially aligned to the weaker of the two satellites and then some slight adjustment can be made ensure the best possible reception from both the satellites. A monoblock installation will require a slightly larger dish size than if only one satellite location had been chosen. Monoblock LNBs are designed to work on a specific dish size and it’s important that the correct dish size is installed or both satellites signals may not be picked up at a sufficient level of strength to guarantee reliable reception.
Q: What is a wideband LNB?
A:
With a wideband LNB having only one local oscillator (e.g. 10.4GHz), and captures the full frequency spectrum of the satellite (300MHz to 2350MHz) which are delivered over two outputs from the LNB. One output carries all the vertically polarized signals whilst the second output carries all the horizontally polarized outputs. Whilst most of the current multiswitches on the market do not accept a wideband input the newer multiswitches such as newer Unicable switches are capable of accepting this as their input.
Caution: Wideband LNBs are not conventional twin LNBs. Wideband LNBs can be connected to a Unicable multiswitches that is designed for this purpose, or, if connected directly to a receiver, only with a suitable tuner.
Q: What does Unicable mean?
A:
Unicable is a new method for distributing satellite television. Several receivers (currently up to 32 in accordance with standard EN 50607) can be connected to only one single chain which is not possible with a conventional satellite distribution (star distribution in multi-switch mode). For more information about Unicable, see www.inverto.tv/what-is-unicable-2
