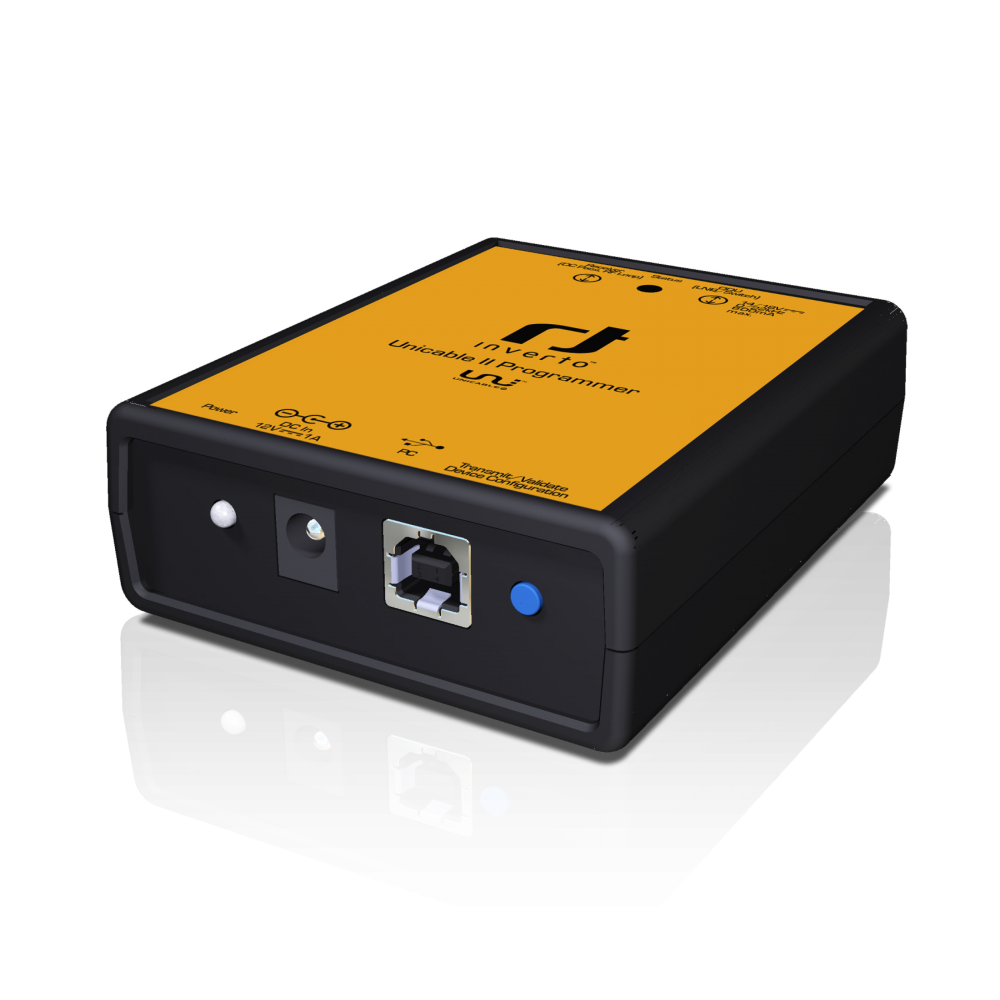

Inverto’s Unicable II Programmer is an essential installation tool helping to configure and diagnose any Unicable II LNB or Multiswitch using a PC. The Inverto’s Unicable II Programmer software tool for PC provides an easy to use and intuitive graphic user interface allowing the installer to modify the default parameters of the installed Unicable II LNB or Multiswitch including for example, the operating mode (Static or Dynamic), the RF/IF frequency mapping grid for Static mode, the IF frequencies of the User Bands, the output power level and the protocols used over each User Band (EN50494/EN50607).

The PC software tool allows to carry out diagnostic tests on the connected LNB or Multiswitch, retrieve diagnostic logs and identify potential installation health issues. The programmer provides several options for updating the firmware or the configuration file of the connected LNB or Multiswitch through the PC. It also features an internal memory that can store a configuration file prepared on the PC and transmit it later to a connected LNB or Multiswitch in the field by pressing a dedicated button releasing the installer from carrying his laptop to the field.

The Programmer device can be integrated into an existing installation, power the LNB or Multiswitch unit using the supplied AC/DC power adapter, and allow a parallel connection to a PC over USB for monitoring and configuration.
The Programmer is supplied with an external AC/DC adapter and a USB cable.

Setup diagram

  User Band and Protocol testing tool

   Static mapping editing tool

  Unicable II LNB configuration screen

  Unicable II Multiswitch configuration screen

Technical specifications
1x Satellite IF, F-type
1x Satellite IF loop-through out, F-type
1x USB (Type-B)

Loop-through loss
1dB max.

Control protocols:
DiSEqC™ commands extension according to CENELEC EN50494
and/or EN50607, DiSEqC2.0.

Display and keys:

Activity LED
Yellow blinking: Communication activity between ODU and Programmer
Green: Configuration files in ODU and Programmer are identical

Power LED
Red: The Programmer is powered over the USB connection
Orange: The Programmer is powered over the 12V DC input

Short press: Transmit a configuration file stored in the
Programmer to the ODU device
Long press: Download the configuration file of the ODU
and compare to a file stored in the Programmer

Power consumption

Programmer only
5 VDC, 50 mA (can be powered over the USB interface)

ODU power
13V ~ 18V, 600 mA max. - powering and programming of an ODU
device requires use of the supplied AC/DC adapter

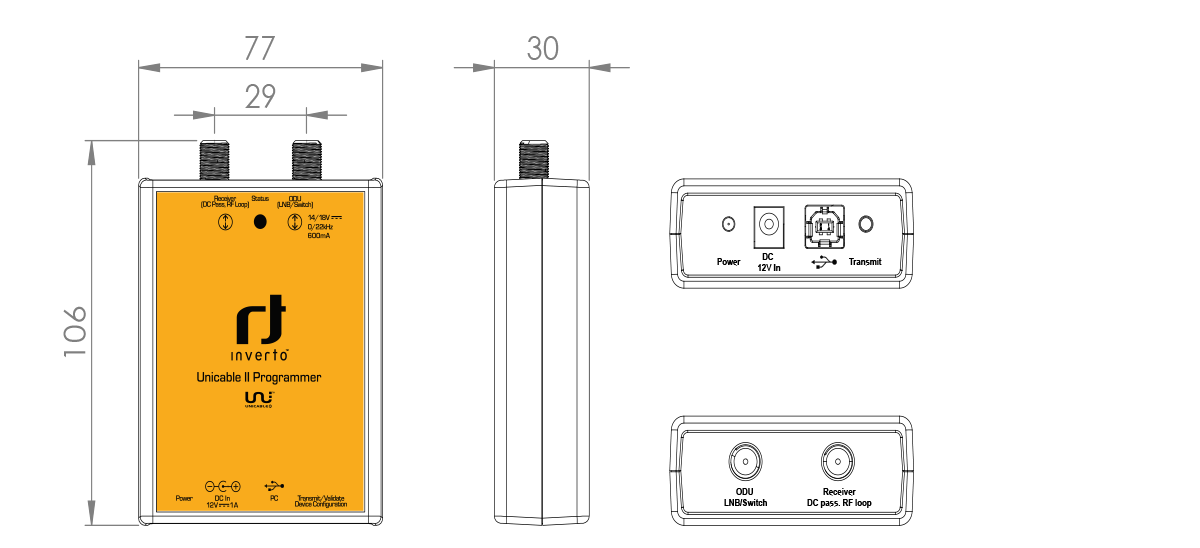

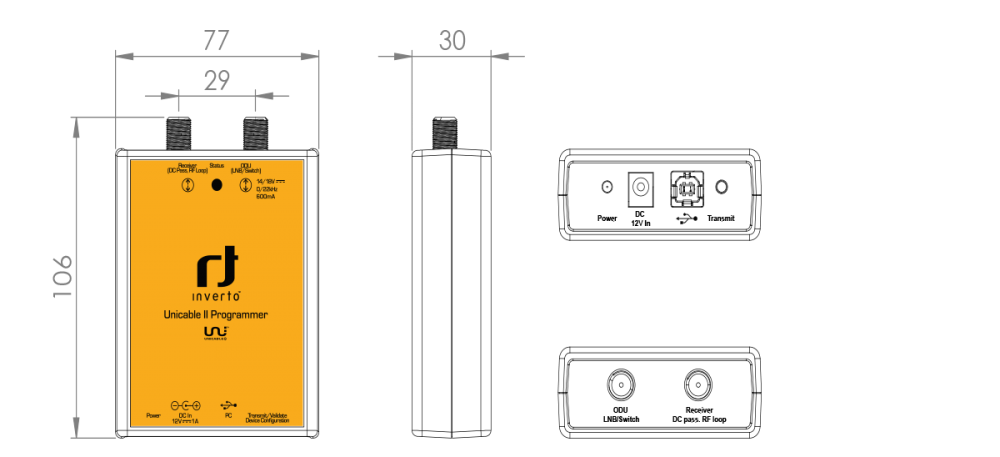

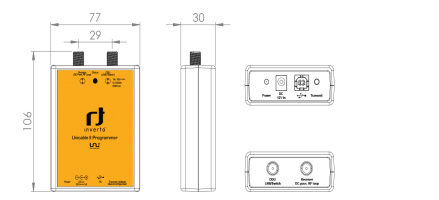

107 mm x 77 mm x 30 mm

AC/DC adapter
Input voltage: 100 VAC ~ 240VAC, 50/60 Hz, 0.8 A max.
Output voltage: 12 VDC
Output current: 2 A Short circuit protection: Yes
Low Voltage Directive (2014/35/EU)
Electromagnetic Compatibility Directive (2014/30/EU)
Eco-Design Directive (2009/125/EC)
