Specifically designed for the European DTH markets, this LNB provides optimized reception capabilities for receiving circular polarized signals on the high band. The LNB enables the reception of signals from one satellite and its distribution to maximum two Set Top Boxes with Single Tuner (or to one STB with Twin Tuner). It is factory-set for easy connectivity with any LO 10.75 Preset Set-top boxes, fully supports High Definition transmissions and provides excellent Noise Figure performance. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for the satellite broadcast reception across Europe.
Main Features:
- LO Frequency 10.75 GHz
- Low Phase Noise, DVB-S2 (HDTV) compliant
- Low Noise Figure
- Low Power Consumption
- High Cross Polarization Isolation
- High Frequency Stability
Technical specifications | |
---|---|
Low band input frequency range | 11.7 GHz ~ 12.75 GHz |
Low band output frequency range | 950 MHz ~ 2000 MHz |
Noise figure |
0.3 dB typ. (0.7 dB max.) |
LO frequency |
10.75 GHz |
LO temperature drift | ±3.0 MHz max. |
LO initial accuracy | ±1.0 MHz max. |
LO phase noise @ 10 kHz |
-80 dBc / Hz max. |
Conversion gain |
55 dB min. |
Gain ripple (over 26 MHz bandwidth) | +/-0.75 dB |
Gain variation (over full band) | ±4 dB max. |
Image rejection |
40 dB min. |
1 dB compression point (@ output) | 0.0 dBm min. |
Cross polarization isolation | 22 dB min. |
Polarization selection - LHCP | 16.0 V ~ 20.0 V |
Polarization selection - RHCP | 11.0 V ~ 14.0 V |
Control signal Cc (band switching) |
22 ±4 kHz |
Output VSWR |
2.5 : 1 |
In band spurious level | -60 dBm max. |
Current consumption |
170 mA max. @ 11 V ~ 20 V |
Operating temperature |
-35 °C ~ +60 °C |
Output impedance |
75 Ω |
Output connector type |
F-Type (female) |

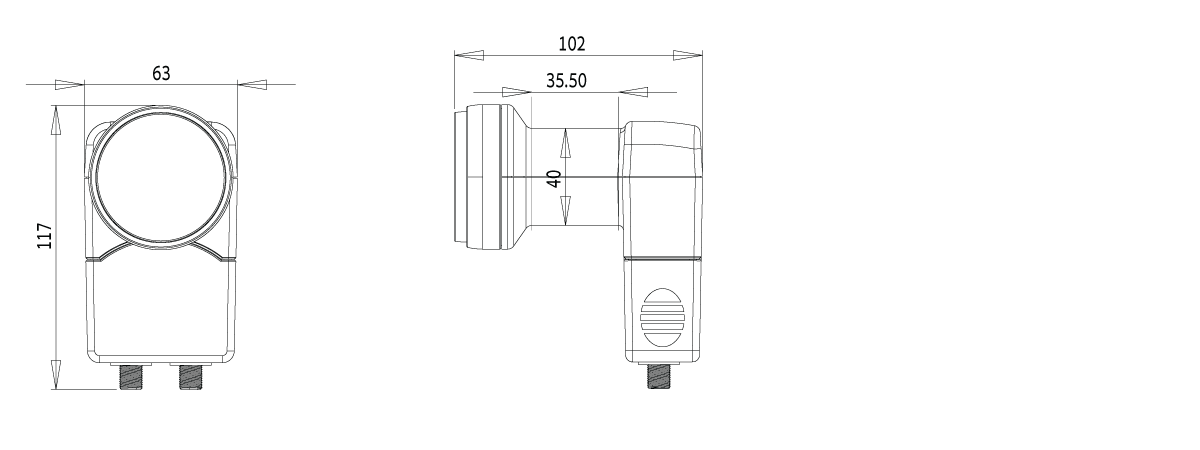

Weight | 195 g |
Logistical info | |
Packaging dimensions (W x D x H) | 12,2 x 6,7 x 11,0 cm |
Packaging weight | 0,27 kg |
Quantity per Carton | 40 pcs |
Carton dimensions (W x D x H) | 74 cm x 26 cm x 23.5 cm |
Carton weight | 11,8 kg |
Quantity per pallet | 960 pcs |
The feedhorn is a part of the LNB and works like a directional horn. Its function is to capture the signals reflected from the dish and to shield the LNB from receiving extraneous radiation from other sources. These collected signals are then passed form the horn to the electronics within the LNB.
HsQuare is a unique waveguide technology which may be coupled with a slightly larger feed horn design to deliver better RF performances compared with common circular microwave waveguides.
