Specifically designed for Inverto's Unifiber RF overlay solution addressing the increasing popularity of fiber networks and the respective need to distribute satellite TV services over fiber at residential, commercial or MDU/IRS installations. This professional wideband LNB is based on a single 10.40 GHz local oscillator and delivers highly isolated vertical and horizontal polarizations ideal for installations delivering a complete range of satellite TV and DTT services over a single fiber using Unifiber optical transmitters.



Main Features:
  • Compatible with Unifiber transmitters
  • Ideal for installations distributing satellite TV and DTT over a single fiber
  • Local Oscillator: 10.40 GHz
  • Low Phase Noise, DVB-S2 (HDTV) compliant
  • Low Noise Figure
  • Low Power Consumption
  • High Cross Polarization Isolation
  • High Frequency stability (PLL)

Technical specifications
Input frequency range 10.7 GHz ~ 12.75 GHz
IF frequency range 300 MHz ~ 2350 MHz
LO frequency 10.40 GHz
Noise figure 0.7 dB typ. (1 dB max.)
LO accuracy @ 25 °C ±0.5 MHz
LO temperature drift ±1 MHz
LO phase noise @ 10 kHz -80 dBc/Hz max.
Conversion gain 55 dB typ.
Gain ripple (over 26 MHz bandwidth) ±0.5 dB @ 27 MHz
Gain variation (over full band) 4 dB max.
Image rejection
40 dB min.
1 dB compression point (@ output)
0.0 dBm min.
Cross polarization isolation
22 dB typ.
Output VSWR
2.5 : 1
In band spurious level -60 dBm max.
Power consumption
200 mA max. @ 11 V ~ 20 V
Operating temperature
-30 °C  ~  +60 °C
Output impedance
75 Ω
Output connector type
F-Typ (w)
Weight
330 g
Daten für Logistik
Abmessungen Verpackung (L x B x H) 14.3 x 9 x 6.4 cm
Gewicht Verpackung 0.35 kg
Stückzahl per Karton 20 pcs
Abmessungen Karton (L x B x H) 37 cm x 33 cm x 16.1 cm
Gewicht Karton 7.5 kg
Stückzahl per Palette 1320 pcs

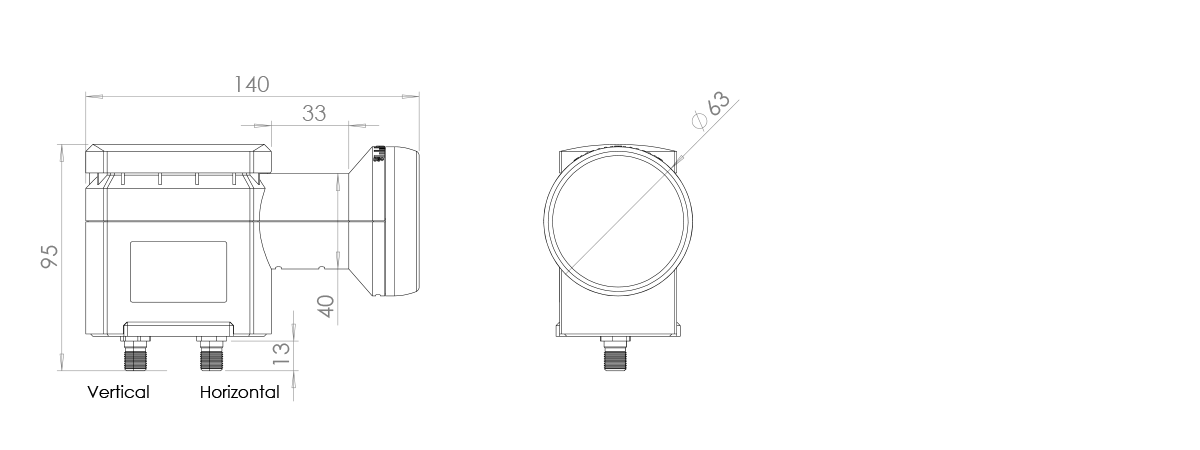

Zeichnung
Konformitätserklärung (CE)
Konformitätserklärung (UKCA)
