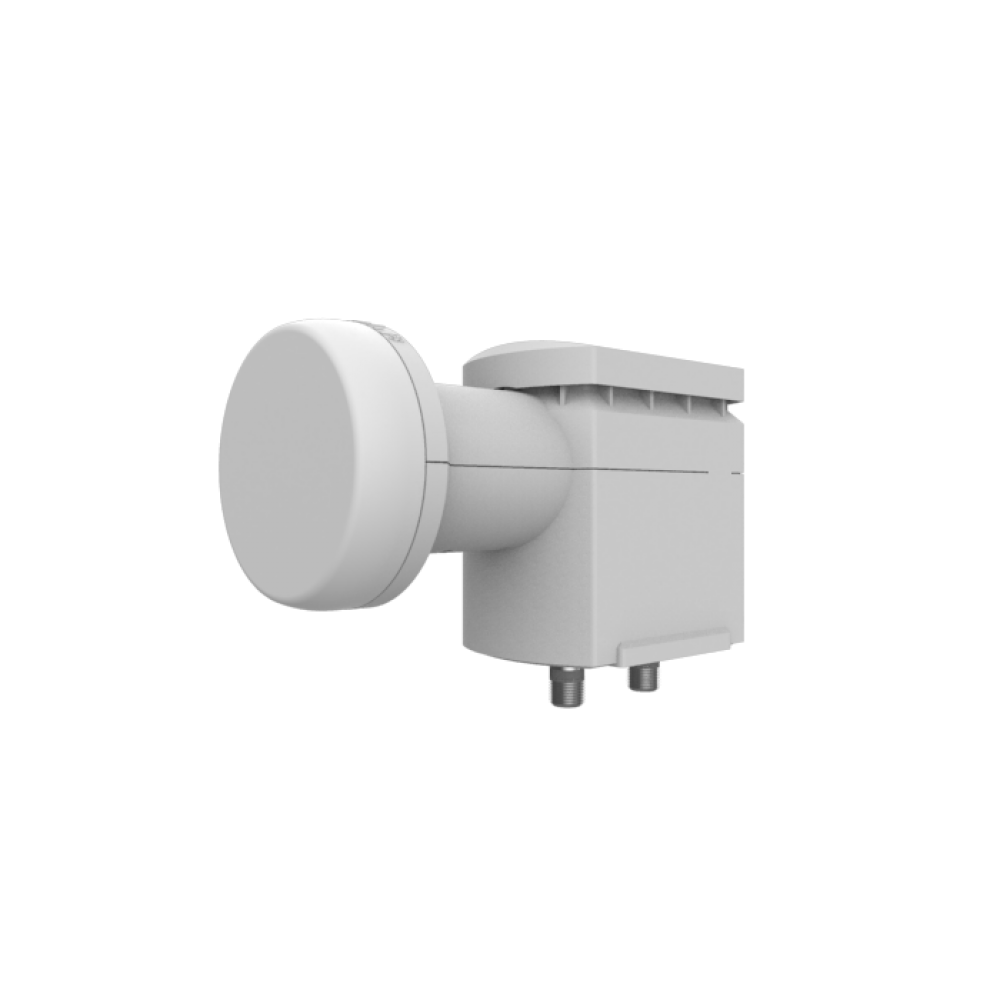

Specifically designed for Inverto's Unifiber RF overlay solution addressing the increasing popularity of fiber networks and the respective need to distribute satellite TV services over fiber at residential, commercial or MDU/IRS installations. This professional wideband LNB is based on a single 10.41 GHz local oscillator and delivers highly isolated vertical and horizontal polarizations ideal for installations delivering a complete range of satellite TV and DTT services over a single fiber using Unifiber optical transmitters.
Main Features:
- Compatible with Unifiber transmitters
- Ideal for installations distributing satellite TV and DTT over a single fiber
- Local Oscillator: 10.41 GHz
- Low Phase Noise, DVB-S2 (HDTV) compliant
- Low Noise Figure
- Low Power Consumption
- High Cross Polarization Isolation
- High Frequency stability (PLL)
| Technical specifications | |
|---|---|
| Input frequency range | 10.7 GHz ~ 12.75 GHz |
| IF frequency range | 290 MHz ~ 2340 MHz |
| LO frequency | 290 MHz ~ 2340 MHz |
| Noise figure | 0.7 dB typ. (1 dB max.) |
| LO accuracy @ 25 °C | ±0.5 MHz |
| LO temperature drift | ±1 MHz |
| LO phase noise @ 10 kHz | -80 dBc/Hz max. |
| Conversion gain | 55 dB typ. |
| Gain ripple (over 26 MHz bandwidth) | ±0.5 dB @ 27 MHz |
| Gain variation (over full band) | 4 dB max. |
| Image rejection |
40 dB min. |
| 1 dB compression point (@ output) |
0.0 dBm min. |
| Cross polarization isolation |
22 dB typ. |
| Output VSWR |
2.5 : 1 |
| In band spurious level | -60 dBm max. |
| Power consumption |
200 mA max. @ 11 V ~ 20 V |
| Operating temperature |
-30 °C ~ +60 °C |
| Output impedance |
75 Ω |
| Output connector type |
F-Typ (w) |
| Weight |
330 g |
| Daten für Logistik | |
| Abmessungen Verpackung (L x B x H) | 14.3 x 9 x 6.4 cm |
| Gewicht Verpackung | 0.35 kg |
| Stückzahl per Karton | 20 pcs |
| Abmessungen Karton (L x B x H) | 37 cm x 33 cm x 16.1 cm |
| Gewicht Karton | 7.5 kg |
| Stückzahl per Palette | 1320 pcs |
Spezifikationen
Bedienungsanleitung

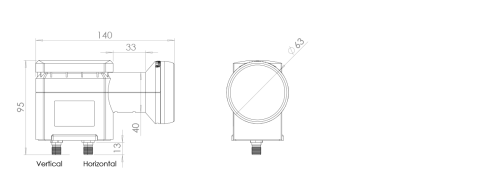

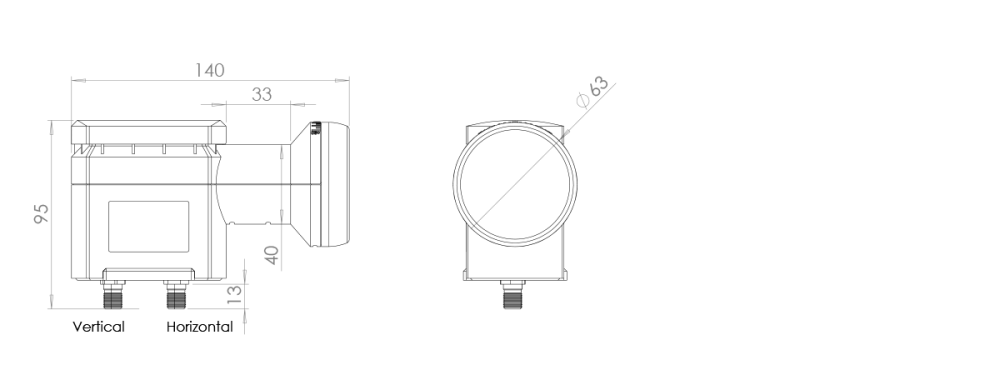

Zeichnung
