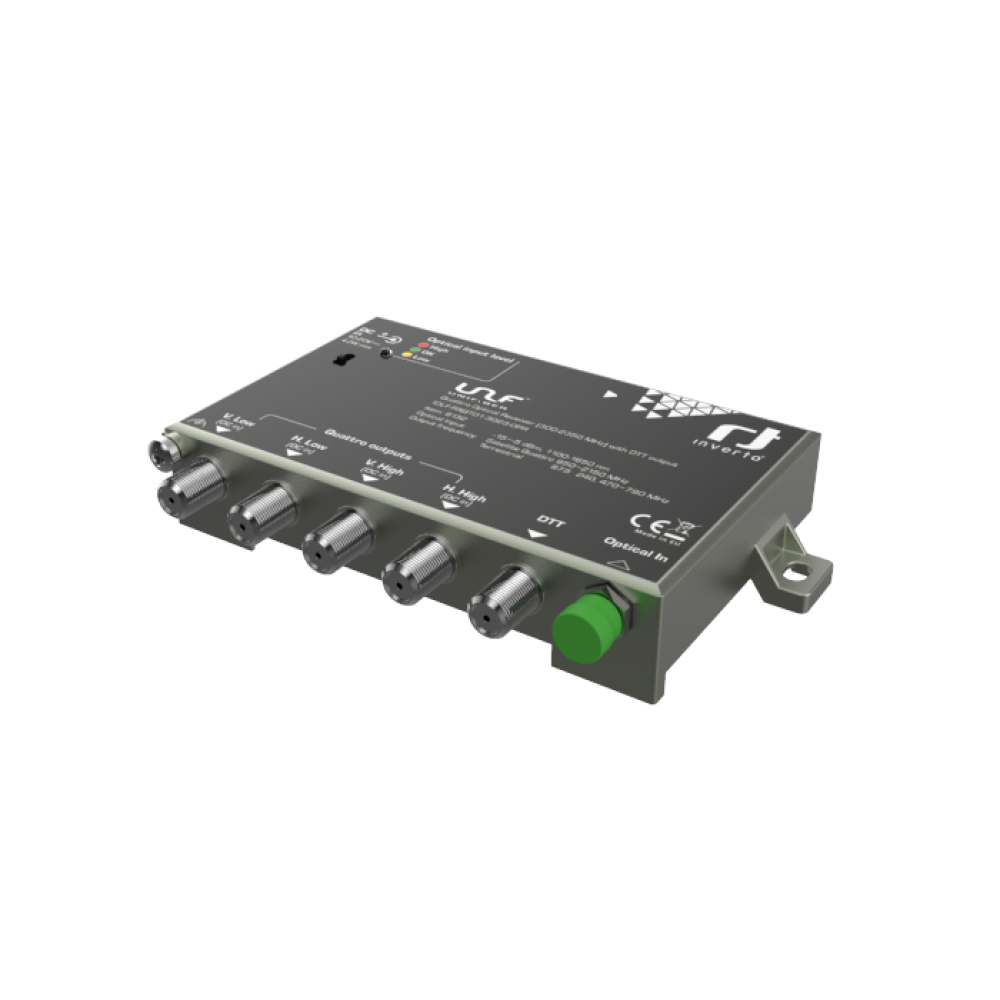

The Unifiber^™ Quattro optical receiver connects to an Inverto's Unifiber^™ optical transmitter over a fiber passive-optical-network to receive satellite and terrestrial signals combined over a single fiber cable. A status LED helps installers to validate the power of the optical signal and guarantee the quality of the RF signals at the outputs of the receiver. This Quattro receiver features four Quattro ports (VL, VH, HH, HL) and an independent DTT port supporting all FM, DAB and DTT broadcasts. The receiver can be powered via the satellite output ports or through an external power supply via the DC in port. The compact and robust die-cast housing makes it ideal for riser/shaft installations addressing fiber-to-the-building applications.



Main features:

• Optical Quattro receiver with an independent DAB/DTT output (EU version)
• Built-in high dynamic range optical AGC (-15~-5dBm) increasing signal quality
• Optical wavelength 1100-1650 nm, compatible with Inverto's Unifiber transmitters
• Quick and easy install, powered from external power supply or satellite ports
• Compact, robust die-cast housing, for indoor installations (IP54)
