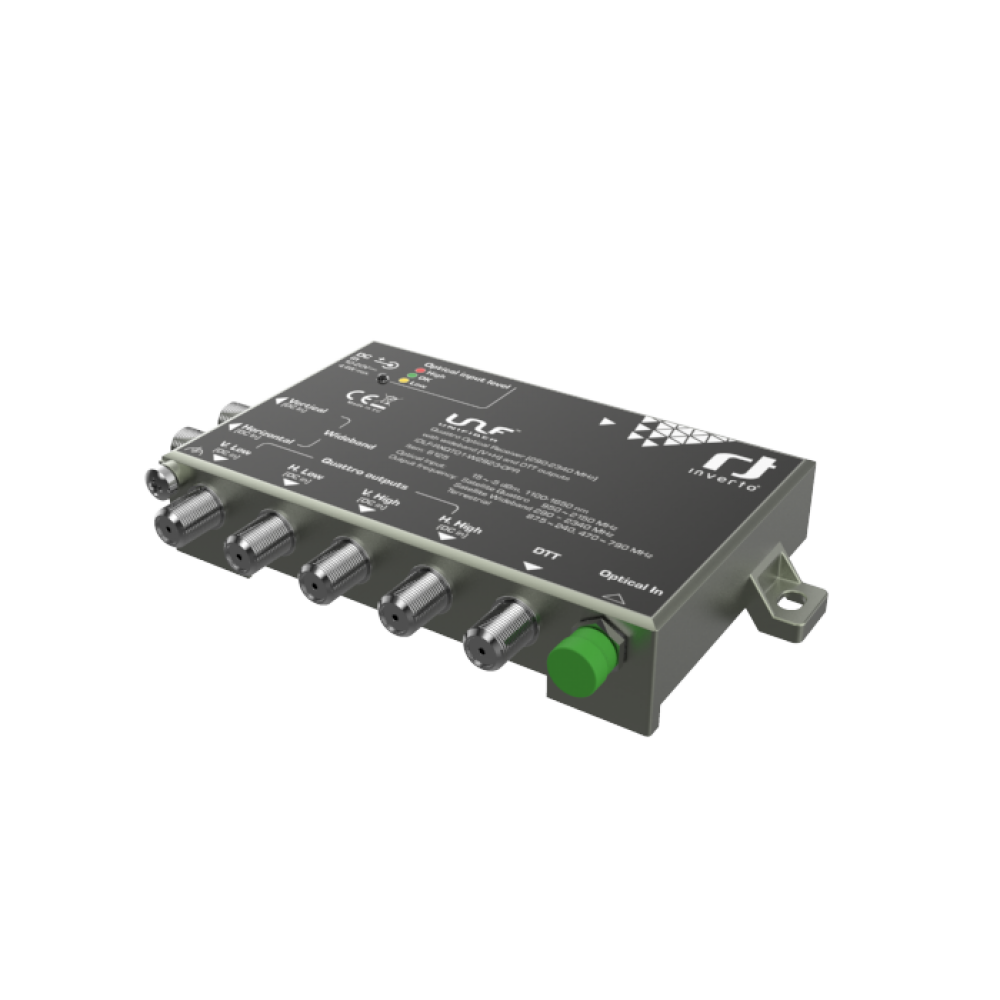

The Unifiber Quattro optical receiver connects to an Inverto's Unifiber optical transmitter over a fiber passive-optical-network to receive satellite and terrestrial signals combined over a single fiber cable. A status LED helps installers to validate the power of the optical signal and guarantee the quality of the RF signals at the outputs of the receiver. This Quattro receiver features four Quattro ports (VL, VH, HH, HL), two wideband ports (vertical and horizontal) and an independant DTT port supporting all FM, DAB and DTT broadcasts. The receiver can be powered via the satellite output ports or through an external power supply via the DC in port. The compact and robust die-cast housing makes it ideal for riser/shaft installations addressing fiber-to-the-building applications.


Main Features:

  • Optical Quattro receiver with independent Wideband and DAB/DTT outputs (UK version)
  • Built-in high dynamic range optical AGC (-15~-5dBm) increasing signal quality
  • Optical wavelength 1100-1650 nm, compatible with Inverto's Unifiber transmitters
  • Wideband frequency range 290 ~ 2340 MHz
  • Quick and easy install, powered from external power supply or satellite ports
  • Compact, robust die-cast housing, for indoor installations (IP54)

Technische Daten

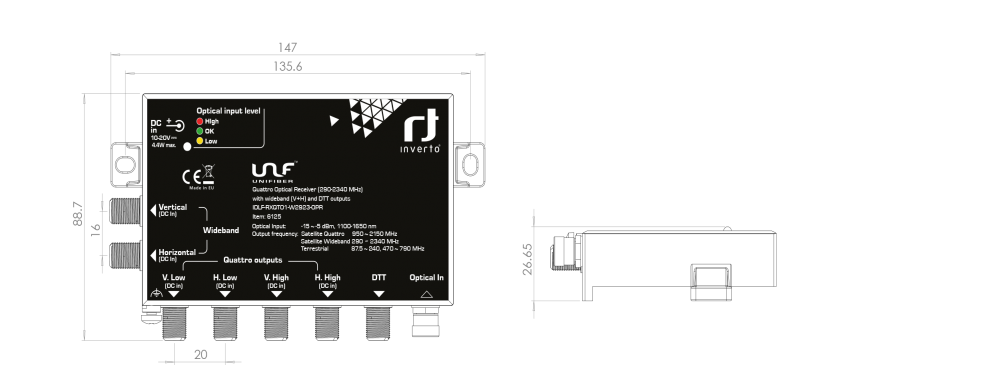

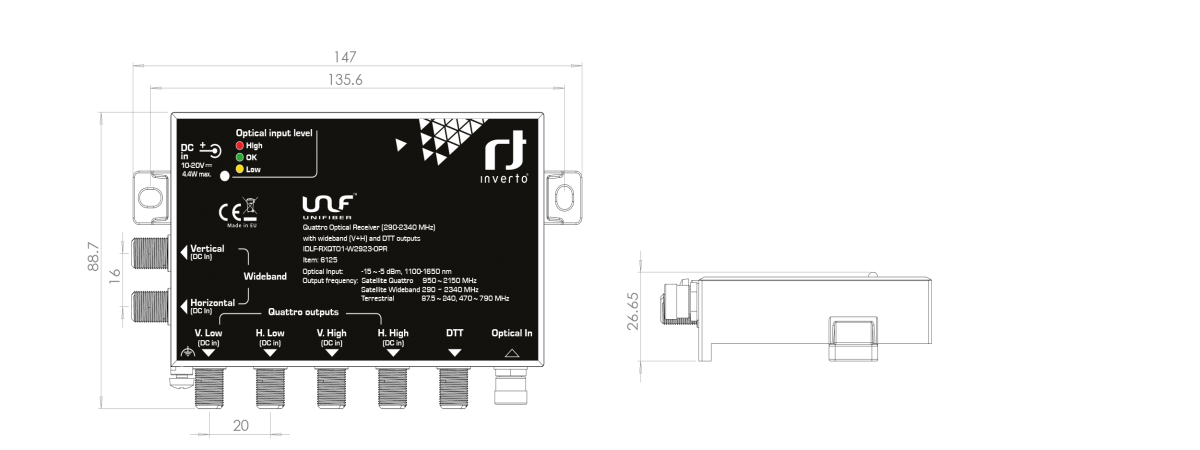

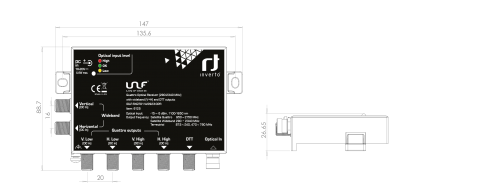

Gehäuseabmessungen (B x T x H) F-Typ (w)
Technical specifications


Satellite wideband outputs












Daten für Logistik
Abmessungen Verpackung (L x B x H) 16.4x10.2 x 3.1 cm
Gewicht Verpackung 0.4 kg
Stückzahl per Karton 20 pcs
Abmessungen Karton (L x B x H) 33.9 x 32.2 x 12.2 cm
Gewicht Karton 8 kg
Stückzahl per Palette 1200 pcs
