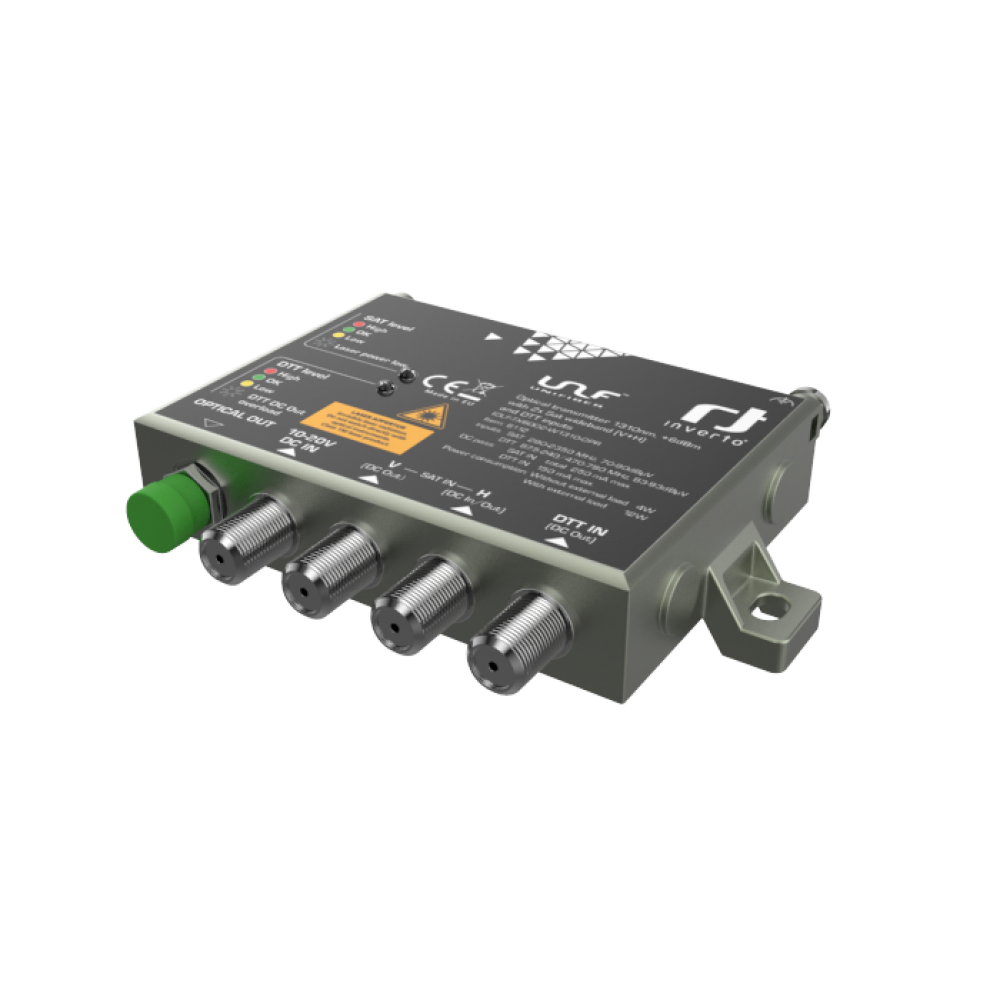

The Unifiber™ transmitter distributes satellite and terrestrial signals over a single fiber cable using a single 1310nm wavelength. At its inputs, it connects to the Vertical and Horizontal ports of a Unifiber™ wideband LNB (UK or EU models) and to DTT signals (FM/DAB/DTT) received through a Unifiber™ DTT processing unit. A built-in AGC makes sure whatever size of satellite dish antenna or DTT antenna is used, the input power level to the transmitter remains optimized to distribute high quality signal. The combined signal modulates an internal laser with an output power of +6dBm over a standard FC/UPC optical connector. The output signal can be distributed to a wide range of remote Unifiber™ optical receivers (dCSS/Quad/Quattro/Wideband) through a Passive Optical Network (PON) of Unifiber™ optical splitters supporting FTTH (Fiber To The Home), FTTB (Fiber To The Block) and FTTF (Fiber To The Floor) installations that do not require amplification of the optical signal.
Main Features:
- Supports Inverto's UK and EU wideband LNB models
- Supports all FM, DAB and DTT broadcasts
- Input level AGC (use any dish, no manual signal level adjustments required)
- Optical budget of up to 21 dB
- Quick and easy install, supporting FTTH, FTTB or FTTF deployment scenarios
- For indoor installations, IP54
| Technische Daten | |
|---|---|
| Gehäuseabmessungen (B x T x H) | F-Typ (w) |
| Technical specifications | |
| RF inputs | 3, F-Type (2x SAT wideband + 1 TERR) |
| Optical Output | 1, FC/UPC |
|
|
|
| Satellite inputs |
|
| Frequency range | 290 ~ 2350 MHz |
| Input level range | 70 ~ 90 dBuV (per transponder) |
| Input Return Loss | 12 dB min. (75 ohm) |
| LNB power supply | 10-20 VDC, 250mA max. |
|
|
|
| Terrestrial input |
|
| Frequency range |
87 ~ 240, 470 ~ 790 MHz |
| Input level range | 83 ~ 93 dBuV |
| Input Return Loss | 12 dB min. (75 ohm) |
| Terrestrial antenna power supply | 10 ~ 20 VDC, 150mA max. |
|
|
|
| Optical output |
|
| Output power | +6 dBm |
| Wavelength | 1310 nm |
|
|
|
| Satellite status LED |
Green = OK, RED = High input power, Yellow=Low input power Blinking = laser failure |
| Terrestrial status LED |
Green = OK, RED = High input power, Yellow=Low input power Blinking = DTT DC OUT overload |
|
|
|
| Power supply |
|
| Voltage range | 10 ~ 20 VDC |
| Power consumption (transmitter unit only) | 4 W max. |
| Operating temperature range | -20° ~ +40° C |

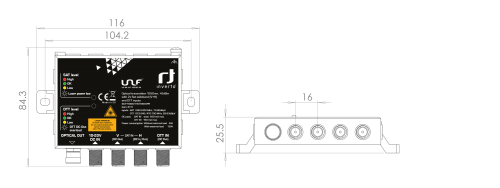

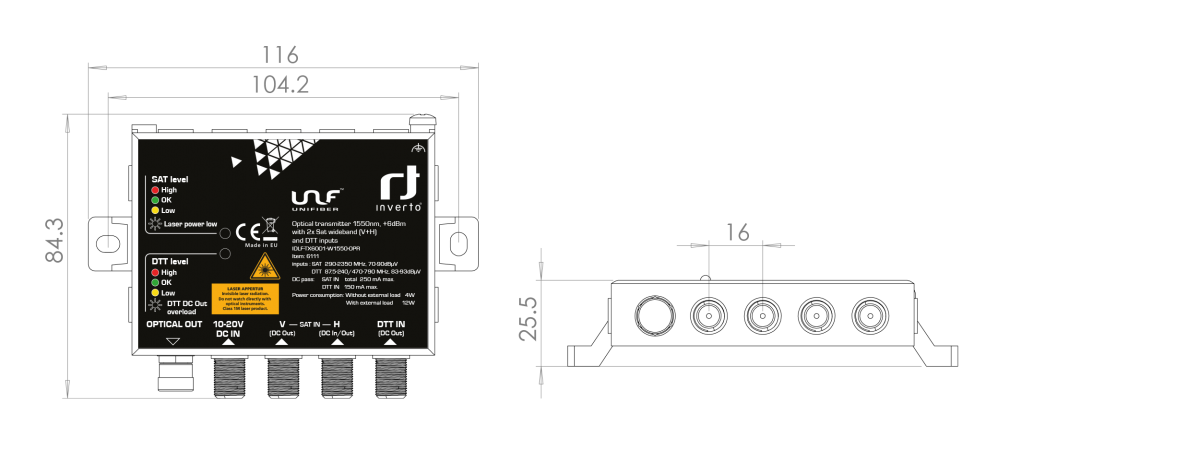

| Dimenssions |
116 x 84 x 25.5 mm |
| Weight |
280 g |
| Daten für Logistik | |
| Abmessungen Verpackung (L x B x H) | 12 x 9.4 x 3.3 cm |
| Gewicht Verpackung | 0.3 kg |
| Stückzahl per Karton | 20 pcs |
| Abmessungen Karton (L x B x H) | 25.2 x 19.9 x 18.5 cm |
| Gewicht Karton | 6 kg |
| Stückzahl per Palette | 1440 pcs |
