Conceived to address the unique needs of hotels, schools, hospitals, MDUs and broadcast facilities, airScreen tality ^™ offers the flexibility, reliability and features required to deploy a secure CATV and/or IPTV solution simply, quickly and at an affordable budget.

Compact & Powerful

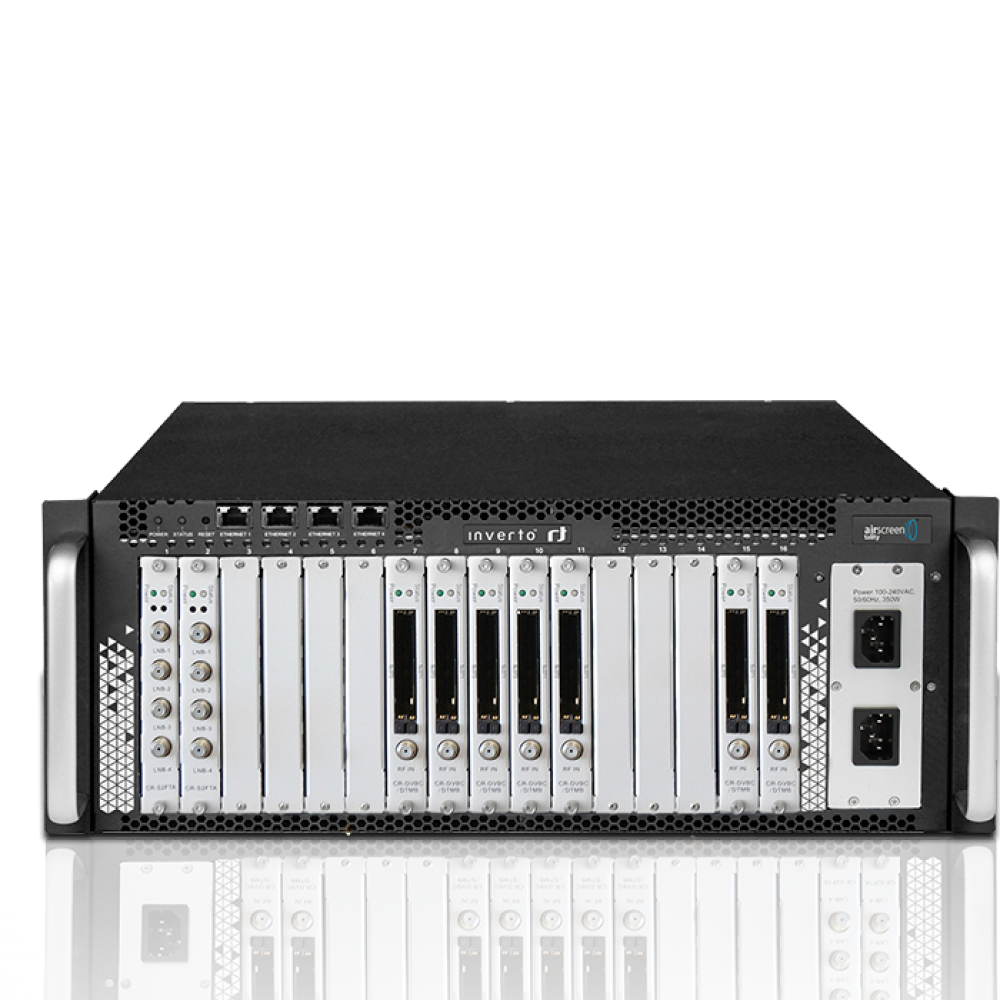

The convenient 4RU package can host up to 16 hot-swappable modules to address the full range of functionalities required to deliver video over coax or IP networks including receiving, de-scrambling, encoding, multiplexing, re-scrambling and modulating a transport stream over QAM, OFDM or IP. For smaller scale deployments, a 1 RU solution with up to 6 hot-swappable modules can be used.

Reliable & Energy efficient
airScreen tality^™ boasts a compact form factor and an energy efficient system design. A built-in service level monitoring and with the optional dual power supply guarantee a non-stop 24/7 operation. Consequently, airScreen tality^™ is an environmental, reliable and space saving design to keep your OPEX low for years to come.

airScreen tality^™ is a perfect choice for MATV/CATV/IPTV systems requiring secure, cost-effective and reliable distribution of video with a simple and easy to use centralized management.

The example illustrated above describes the application of airScreen tality^™ to Multichoice’s* DStv Business hospitality

TV deployments:

airScreen tality^™ receives signals from a DVB-S/S2/S2X source, descrambles the encrypted programs utilizing CI CAMs. The programs are then multiplexed into new streams and QAM modulated over multiple channels. In this specific DStv Business case, they are also re-encrypted in real-time basis using an Inverto exclusive CAMCAS solution that is approved by MultiChoice and its studios and content owners. The output frequencies are then simply delivered via the traditional coaxial cable network or alternatively via an IP network (DVB TS over IP) to the hotel rooms:

Coax networks:

With re-encryption, the content is displayed using either an HD zapper box or a Conditional Access Module (CI+ CAM) inserted in the TV set to de-scramble the transport stream.

IP networks:

With re-encryption; the IP output will be sent, as multicast streams, to an IPTV zapper-box with HDMI out to the TV. When in the clear, video can be streamed over IP (UDP/RTP) to users’ PC or mobile devices using supporting player applications. All of this in 4 RU package, saving space and operating costs. On top, airScreen tality^™ seamlessly integrates with existing or third-party solutions eg VOD, ad insertion or billing systems to offer a complete solution in a turnkey package (TBD on a case-by-case basis).
