Designed to address the growing need to converge IP video streaming and broadcast technologies in order to allow service providers to seamlessly deliver their service across multiple networks such as over-the-top, broadcast and IPTV, the Q-Stream  mABR server is an on-premise content delivery server compatible with the DVB-NIP tech stack. It can receive HLS/DASH streams or files of any type over multiple interface protocols, encode them into FLUTE packets and generate a DVB-MPE transport stream or an IP stream ready for GSE/DVB-S2X broadcast.

Utilizing PCIe extension slots, the Q-Stream mABR server can, depending on the target application, integrate with a variety of modules such as receivers, video encoders and modulators, turning it into a powerful all-in-one platform converging traditional broadcast and the latest IP streaming technologies.

The Q-Stream mABR server embeds an intuitive web UI allowing users to ingest content from various sources, manage play out lists for broadcast and define the target group of gateways for each broadcast. Its high performance, cost-effective hardware combined with simplicity of operation, makes it an ideal solution for video service providers that want to profit from the convergence of IP and broadcast technologies, extend their service over multiple networks and screens to locations with limited or no Internet connectivity.



Main features and benefits:

  • Economic DVB-NativeIP compatible mABR server solution
  • Live and on-demand media streaming
  • Secure, low latency streaming
  • Multipurpose multi-format file transfer over broadcast satellites
  • Intuitive content ingestion, receiver groups management and play out broadcast tools
  • Redundant power supply
  • Open and flexible interface to teleport uplink equipment
  • Available as an on-premise installation or as a cloud service

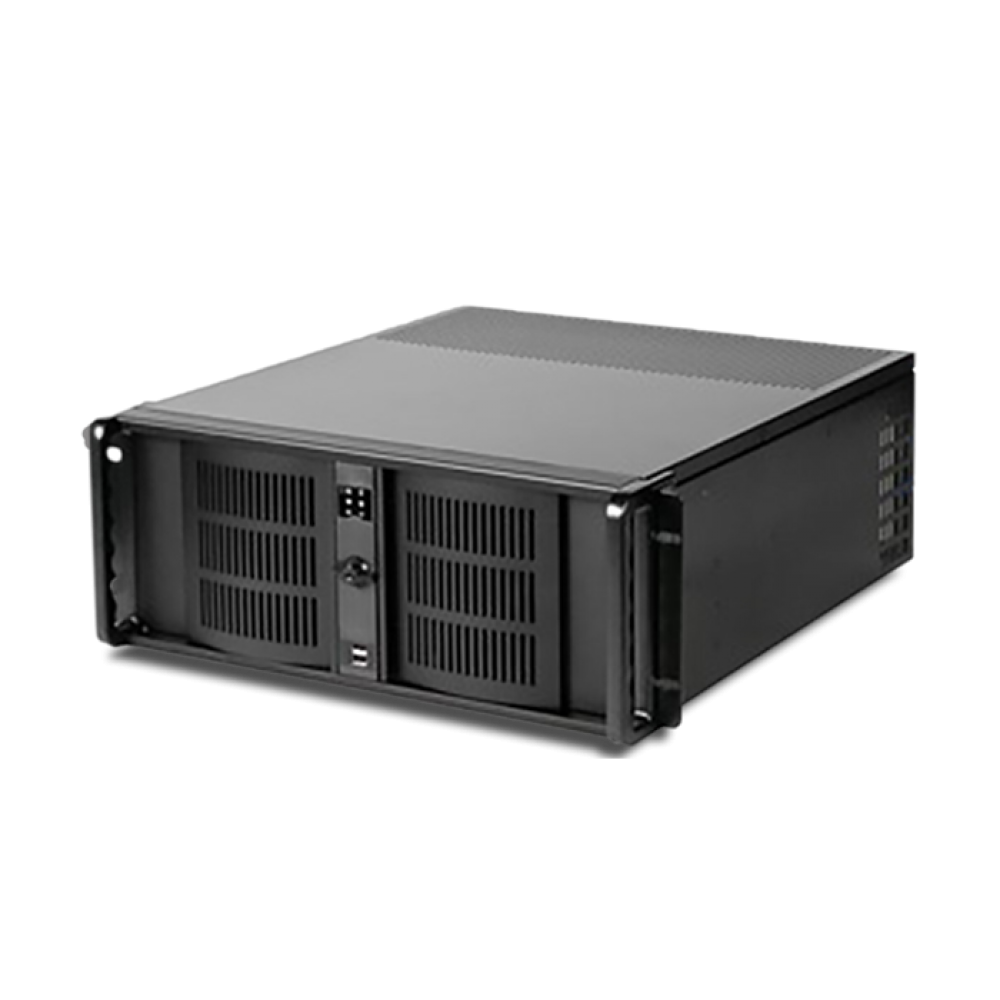

*Product image is for illustration purpose, actual product may look different depending on availability.



Minimum technical specifications
System
CPU Intel® Xeon® processor E3-1585 v5 4-Core 8 Threads
  Intel® C236 chipset
  Intel® Iris Pro Graphics P580 (GT4e)
Memory and storage 32 GB DDR4 2133MHz
  256 GB SSD
  1 TB HDD
Networking interface Dual 10GBase-T LAN with Intel® X550
Storage interface 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
USB ports 5 USB 3.0 (2 rear, 1 Type A, 2 internal)
Extension slots 7x PCIe 3.0 extension slots
Broadcast interface IP (OPTIONAL: DVB-ASI, DVB-S2X, DVB-T2)
Power supply 2 built-in power supply units

Input / Output streams
File formats ABR files, Apple HLS, MPEG-DASH, CMAF
Generic files – documents, firmware, video, audio, data
IP Protocols HTTP, HTTPS, Multicast, Unicast, RTP, RTSP, RTMP, FLUTE, DVB-mABR
DVB transport stream protocols GSE HEM, DVB-MPE
Containers MPEG TS, MP4, RAW RTP H.264/AAC/OPUS, FLV

Security HTTPS, AES, DTLS-SRTP, SSL certificate management

File system EXT3, EXT4, XFS

System management SSH, web UI, REST API, System management port, IPMI, Watchdog
