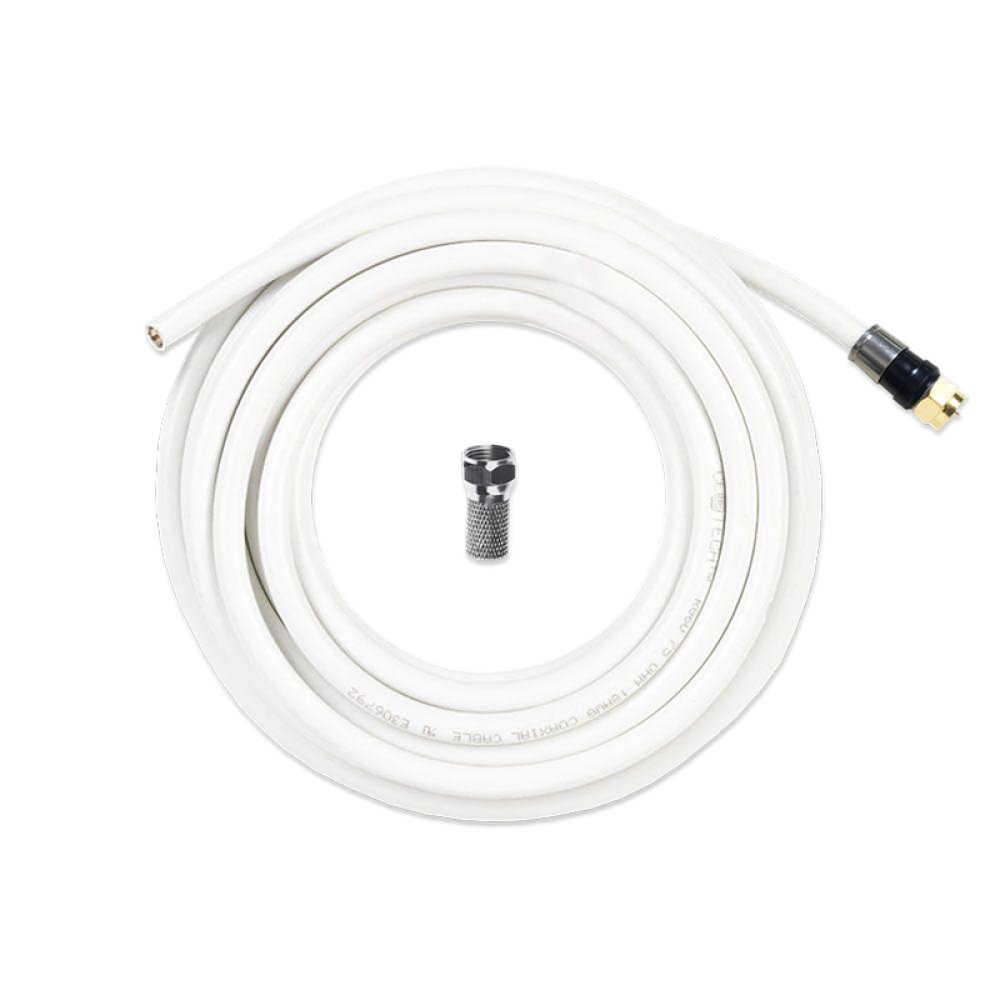

Professional cost-effective 75 Ohm double shielded coaxial cable for Satellite and CATV signal distribution. This cable is manufactured according to the highest quality standards and has gas-injected FPE dielectric with a stable impedance and SRL characteristics and low through loss values. The cable is supplied with a high quality compression f-connector on one end and a free twist-on connector to be used on the other end of the cable at the installation. For indoor and outdoor use.

The construction of our coax cables can be customized and supplied with a color, length and/or packaging of your choice. Please contact us at sales@inverto.tv to receive a proposal for your specific requirements.






Technical specifications
Applicable
indoor/outdoor
Inner conductor
Material
CCS
Diameter ᴓ [mm]
1.00

Dielectric

Material
Foamed PE
Diameter ᴓ [mm]
4.80

1st shielding

Material
Bonded Al foil

2nd shielding (braid)

Material
Al
Braid coverage [%]
33

3rd shielding


Outer sheath

Material
PVC
Sheath diameter ᴓ [mm]
6.65
Sheath colour
White
RoHS complaint
yes
Characteristics
UV protected,
footage marker every meter

Electrical data

Impedance [Ω]
75 ±2
Capacitance [pF/m]
52 ±2
Velocity rate [%]
>82
DC resistance centre conductor [Ω/km]
125
DC resistance outer conductor [Ω/km]
70

Attenuation [dB/100m] at 20⁰C @

50 MHz
7.1
200 MHz
9.8
950 MHz
21
2050 MHz
30

Structural return loss [dB] @

5 MHz ~ 470 MHz
>20
> 470 MHz ~ 1000 MHz
>20
> 1000 MHz ~ 2000 MHz
>18
> 2000 MHz ~ 3000 MHz
>18

Screening attenuation [dB] @

30 MHz ~ 1000 MHz
>60
> 1000 MHz ~ 2000 MHz
>60
> 2000 MHz ~ 3000 MHz
>60

Transfer impedance [mΩ/m] @

10 MHz ~ 30 MHz
≤ 32

Mechanical data

Operating temperature
-30⁰C ~ +70⁰C
Footage markers per meter
1
Available packages and colors: Roll 25m (white)
