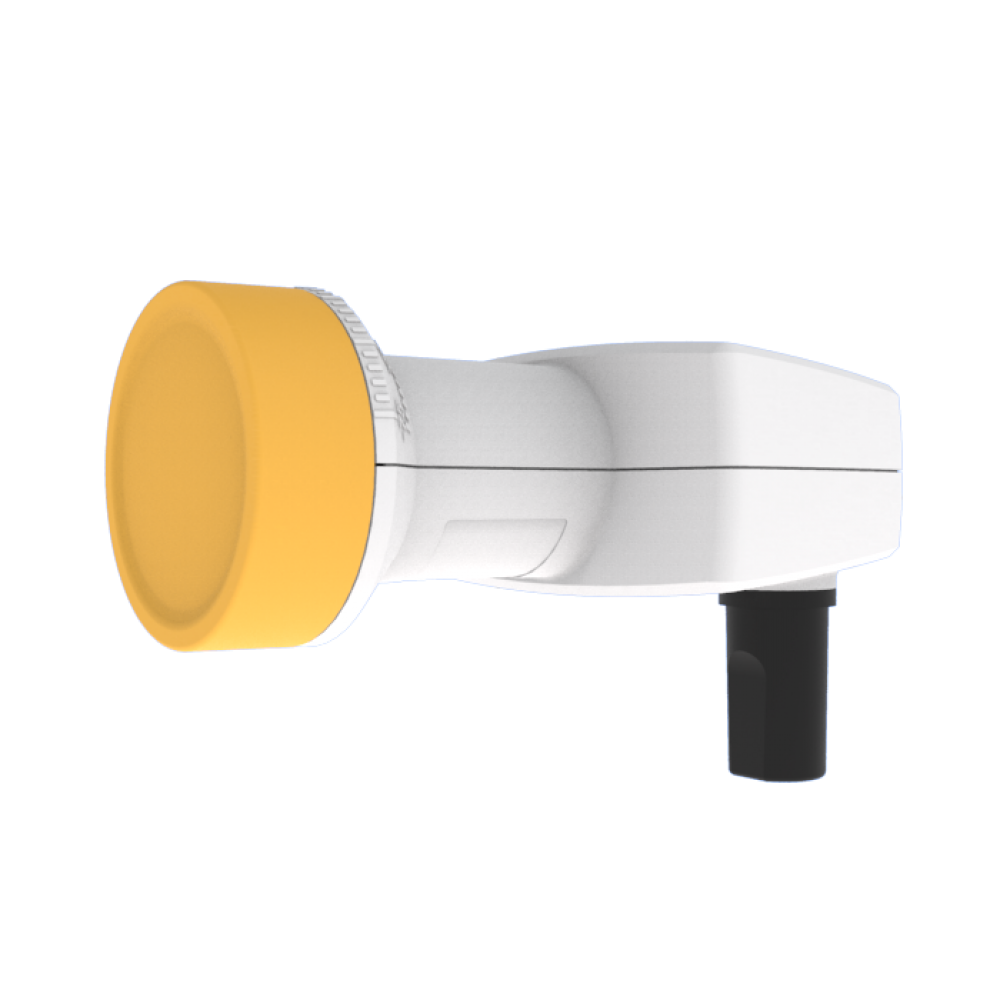

This Unicable II LNB enables installations with up to 24 satellite receivers connected over a single coax cable and using the EN50494/EN50607 protocols providing access to unlimited number of transponders (also known as ‘Dynamic’ mode). Alternatively, it can be configured to deliver a fixed mapping of transponder frequencies to IF frequencies (also known as ‘Static’ mode), allowing an unlimited number of receivers to be connected and providing them access to up to 24 transponders (or more, depending on the bandwidth of the desired transponders) based on digital channel stacking technology.

Digital channel stacking technology uses fast wide­band analog to digital converters and applies digital signal processing to select desired transponder channels, up convert them and stack them as IF signals over the Unicable output ports. The Unicable II LNB offers a full flexibility of channel selection, supports many more set-top-boxes over existing cabling thus significantly reducing cost and simplifying installations at subscribers’ homes. The Static mode, allowing an unlimited number of receivers to be connected to the LNB, makes multi-room distribution and MDU installations substantially cheaper and simpler than ever before. The operating mode - dynamic or static - output power level, channel bandwidth, UB numbers, center frequencies and dish alignment mode are all programmable and can be configured and updated in the field using a dedicated programmer device - the SatPal Controller*.

The LNB can be powered over a connected STB or by an AC/DC adapter over a power inserter in case the STB is unable to provide the necessary power. Unicable II is backward compatible, fully compliant with both EN50494 and EN50607 standards and integrates seamlessly into EN50494-only or mixed EN50494/EN50607 installations of compatible STBs, Next Generation PVRs and HGWs.

For more information on the Unicable II technology and its advantages please refer to: www.inverto.tv/what-is-unicable-2
For more information on the SatPal technology and its advantages please refer to: www.inverto.tv/satpal


Main Features:

  • Low phase Noise HDTV-DVBS2 compliant
  • Low Noise Figure
  • Very high cross-pol isolation
  • Programmable Static frequency mapping mode
  • Dish alignment mode

*SatPal Controller not included, sold separately as an optional accessory.

Technical specifications
Input frequency range 10.7 GHz ~ 12.75 GHz
Noise figure
1 dB max.
LO frequency
10.4 GHz
LO temperature drift ±2.5 MHz max.
LO initial accuracy ±1.0 MHz max.
LO phase noise @ 10 kHz
-80 dBc/Hz max.
Conversion gain
55 dB min.
Gain variation (over full band) ±0.75 dB/UB max.
Image rejection
40 dB min.
1 dB compression point (@ output) 0 dBm min.
Cross polarization isolation 22 dB min.
Output VSWR
2.5 : 1
Current consumption
350 mA max. @ 13.5 V
Operating temperature
-30 °C ~ +60 °C
Output impedance
75 Ω
Output connector type
F-Type (female)
Weight 220 g
Unicable II™ (dCSS) port specifications
Bandwidth User Band
Configurable, 10 MHz ~ 80 MHz (default 36 MHz)
Number of User Bands
Up to 24 User Bands
Standard configuration
24 UBs in dynamic mode:
UB1 1210 MHz (EN50494+EN50607)
UB2 1420 MHz (EN50494+EN50607)
UB3 1680 MHz (EN50494+EN50607)
UB4 2040 MHz (EN50494+EN50607)
UB5 1005 MHz (EN50494+EN50607)
UB6 1050 MHz (EN50494+EN50607)
UB7 1095 MHz (EN50494+EN50607)
UB8 1140 MHz (EN50494+EN50607)
UB9 1260 MHz (EN50607)
UB10 1305 MHz (EN50607)
UB11 1350 MHz (EN50607)
UB12 1475 MHz (EN50607)
UB13 1520 MHz (EN50607)
UB14 1565 MHz (EN50607)
UB15 1610 MHz (EN50607)
UB16 1725 MHz (EN50607)
UB17 1770 MHz (EN50607)
UB18 1815 MHz (EN50607)
UB19 1860 MHz (EN50607)
UB20 1905 MHz (EN50607)
UB21 1950 MHz (EN50607)
UB22 1995 MHz (EN50607)
UB23 2085 MHz (EN50607)
UB24 2130 MHz (EN50607)
Control protocols
DiSEqC1.x / DiSEqC2.x, EN50494 / EN50607
Channel isolation
25 dB Min.
Logistical info
Packaging dimensions (W x D x H) 10.5 cm x 6.85 cm x 13.9 cm
Packaging weight 0.26 kg
Quantity per Carton 50 pcs
Carton dimensions (W x D x H) 54.5 cm x 38.8 cm x 29.8 cm
Carton weight 13.78 kg
Quantity per pallet 600 pcs


Images

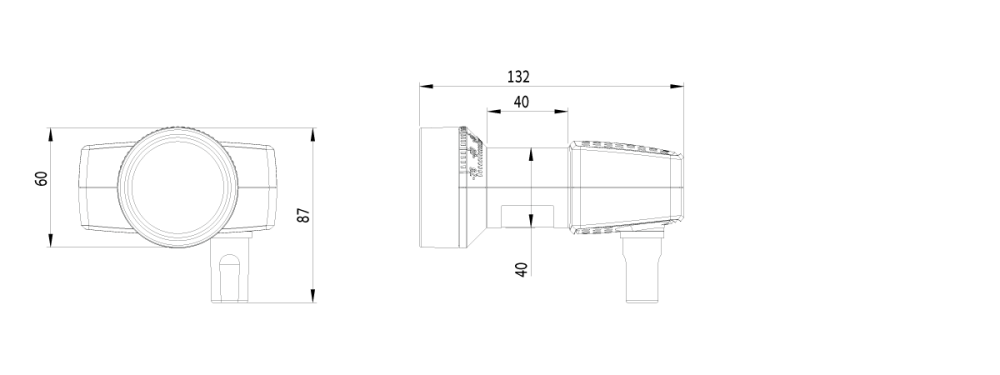

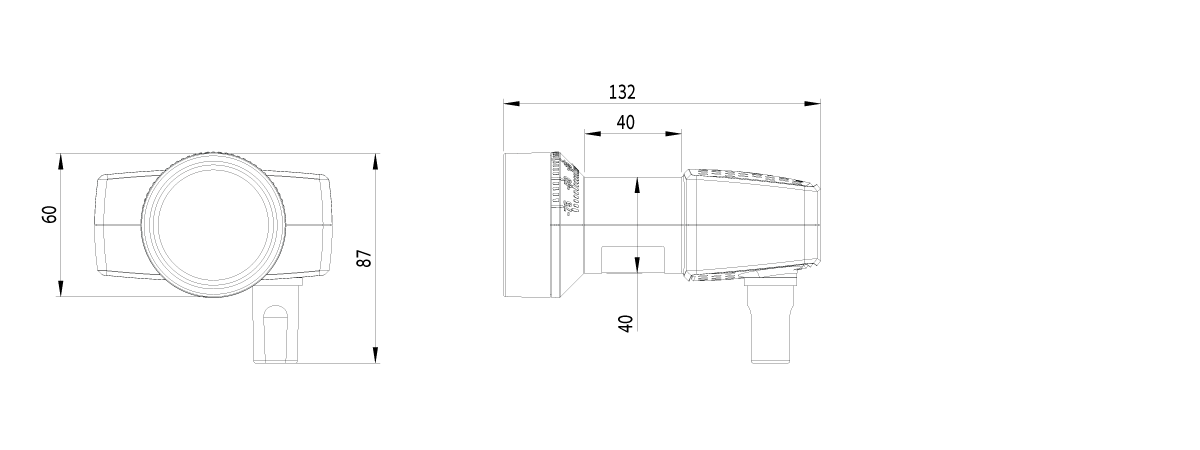

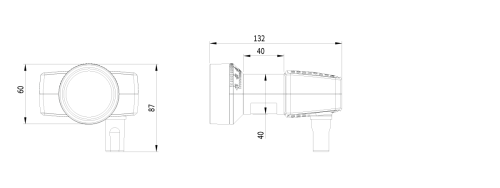

Drawings
FAQ
Q: What is an LNB?
A:
An LNB - Low Noise Block (also called an LNC- Low Noise Converter), it is used for communications (broadcast) satellite reception. The LNB is usually affixed either in or on the satellite dish and its purpose is to collect and amplify the satellite signal received from the dish and then down convert the signal to lower more manageable IF frequency which can then be carried over standard coaxial cabling to the receiver.
Q: What is a feedhorn?
A:

The feedhorn is a part of the LNB and works like a directional horn. Its function is to capture the signals reflected from the dish and to shield the LNB from receiving extraneous radiation from other sources. These collected signals are then passed form the horn to the electronics within the LNB.

Q: What is the difference between a Quad and Quattro LNB?
A:
A quad or quad switch LNB is an LNB where the multi switch is integrated into the LNB and gives 4 independent output ports for the connection of 4 receivers. A Quattro LNB has 4 outputs and each of the output’s is set to one of the differing polarities, the 4 outputs are V/L, V/H, H/L & H/H. A Quattro LNB is normally used to feed a multiswitch which then allows the distribution of the signal to any number of satellite receivers. All four outputs of a Quattro LNB are marked accordingly with V/L, V/H, H/L & H/H to avoid confusion and malfunctions when connecting to the multiswitch.
Q: What is the HsQuare Technology?
A:

HsQuare is a unique waveguide technology which may be coupled with a slightly larger feed horn design to deliver better RF performances compared with common circular microwave waveguides.

Q: What is a monoblock LNB?
A:
This design consists of two independent LNBs in a single housing and allows a user the potential of receiving the signal from two different satellites which are at slightly different orbital opposition from a single dish installation. The switching between the satellitesis achieved via the use of DiSEqC signals or Toneburst (Mini DiSEqC). Monoblock LNB’s are available mostly for satellites with a fixed 4.3° or 6° spacing and the range covers Ku band monoblock switch single, twin and quad outputs.

Example where a 6° monoblock LNB could be used is for the reception of ASTRA 1 (19.2° East) and Hotbird (13° East) or with 4.3° distance for the reception of ASTRA 1 (19.2° East) and ASTRA 3 (23.5° East).
Q: Why can I receive only one satellite with my monoblock LNB?
A:
For dual satellite reception the dish is normally initially aligned to the weaker of the two satellites and then some slight adjustment can be made ensure the best possible reception from both the satellites. A monoblock installation will require a slightly larger dish size than if only one satellite location had been chosen. Monoblock LNBs are designed to work on a specific dish size and it’s important that the correct dish size is installed or both satellites signals may not be picked up at a sufficient level of strength to guarantee reliable reception.
Q: What is a wideband LNB?
A:
With a wideband LNB having only one local oscillator (e.g. 10.4GHz), and captures the full frequency spectrum of the satellite (300MHz to 2350MHz) which are delivered over two outputs from the LNB. One output carries all the vertically polarized signals whilst the second output carries all the horizontally polarized outputs. Whilst most of the current multiswitches on the market do not accept a wideband input the newer multiswitches such as newer Unicable switches are capable of accepting this as their input.

Caution: Wideband LNBs are not conventional twin LNBs. Wideband LNBs can be connected to a Unicable multiswitches that is designed for this purpose, or, if connected directly to a receiver, only with a suitable tuner.
Q: What does Unicable mean?
A:
Unicable is a new method for distributing satellite television. Several receivers (currently up to 32 in accordance with standard EN 50607) can be connected to only one single chain which is not possible with a conventional satellite distribution (star distribution in multi-switch mode). For more information about Unicable, see www.inverto.tv/what-is-unicable-2
