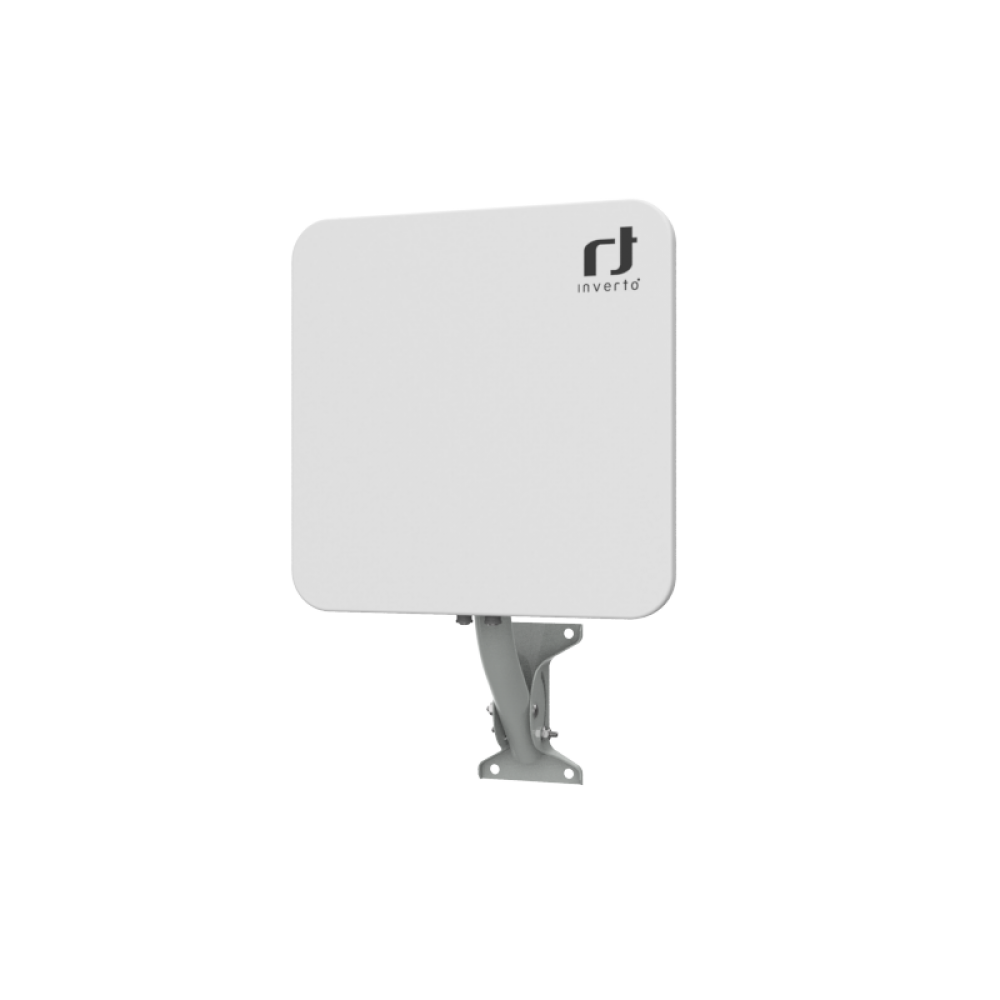

This outdoor antenna (ODA) is a dual polarisation high-gain directional antenna designed to receive and transmit 5G signals from an indoor 5G modem. The antenna offers 17 dBi peak gain for the 3.6 GHz 5G band (3400 MHz – 3800 MHz range). The unit design features an optional built-in calibration circuitry. This allows cable loss calibration to be performed when used in conjunction with a compatible Calibration IDU, limiting the antenna output power to permitted transmit EIRP levels while maintaining high performance receive capabilities at the same time. Internal switching between calibration and operation modes is controlled from the IDU via a DC voltage on the coax cable. With no DC voltage applied, the antenna will be in operation mode and isolated from the IDU.

A compatible wall mount is included.

Key features

• Dual Polarization, High Gain Directional Antenna
• Operating Frequency 3.6 GHz 5G band with 17 dBi gain
• Compatible with Calibration IDU for Transmit EIRP EMF limit compliance
• 75 Ohm 2x F-Female Ports Interface to IDU
• Diecast chassis
• Weatherproof
• Surge protection

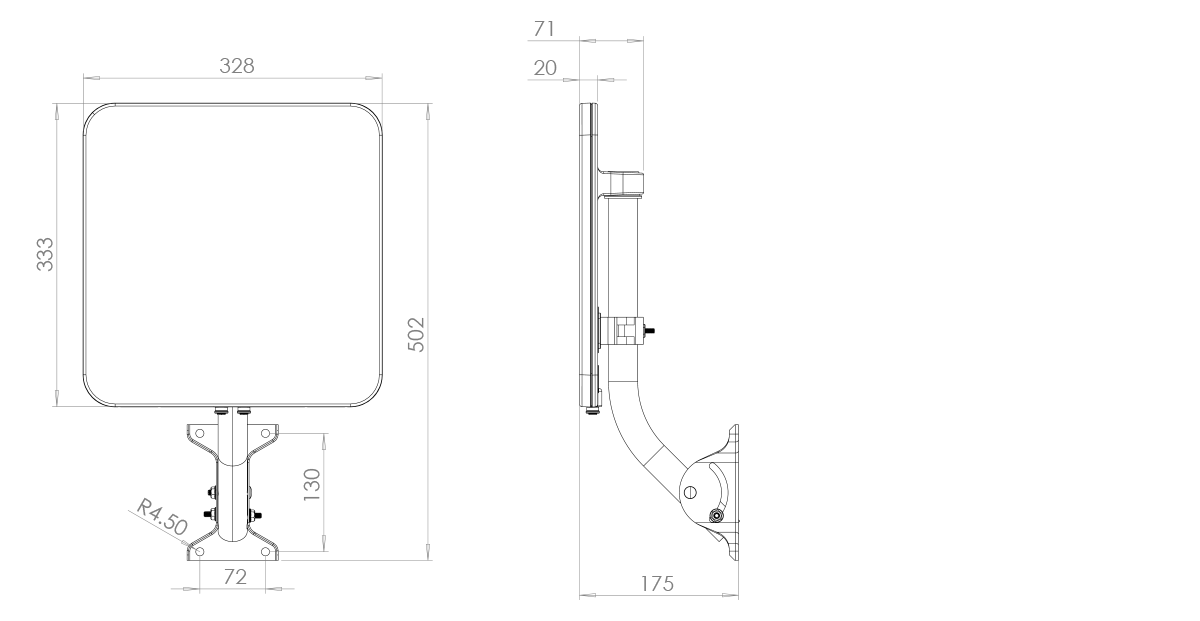

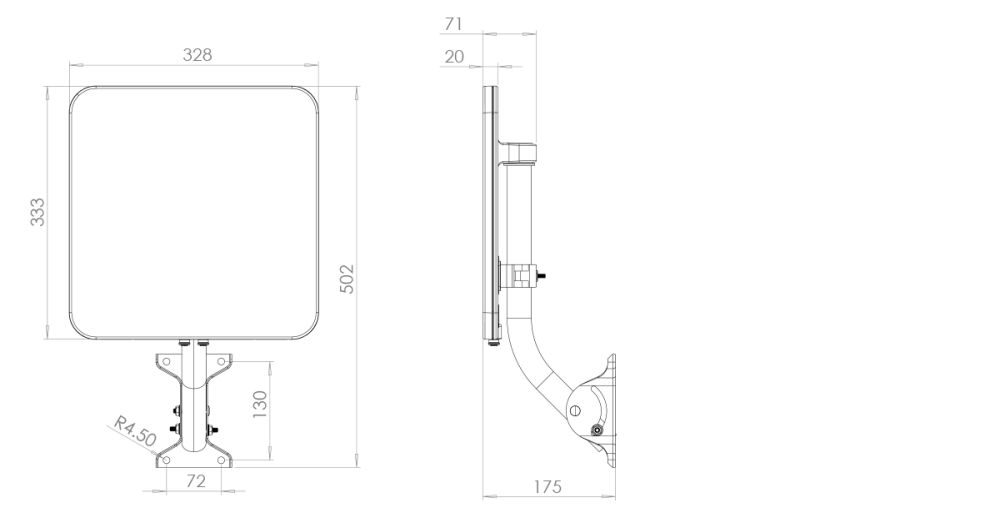

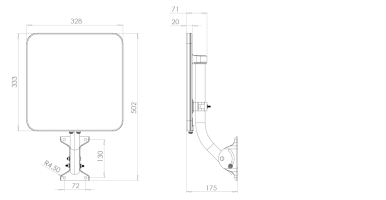

• Wall or pole mountable, Ø32 mm
