Inverto’s Q-Stream™ Gateway is a cost-effective DVB-NIP compatible satellite receiver designed to receive content distributed over broadcast satellites using Inverto’s Q-Stream™ content distribution solution. The Q-Stream™ Gateway features a DVB-S2X front end and supports content delivery over GSE HEM or DVB-MPE transport streams.
It receives live ABR video streams or any other type of media files including VoD, documents and data files over multicast streams and publish the content over a built-in web server. The Q-Stream™ Gateway features a LAN port and a WLAN Access Point to stream the content to mobile devices directly or through a companion Q-Stream™ Edge server when a larger number of end users’ mobile devices shall be supported at the same time.
In addition, the Q-Stream™ Gateway can decode the live mABR TV streams and display over a TV screen using its HDMI and analogue A/V ports. The Q-Stream™ Gateway features a USB2.0 port for connecting an optional local storage.
It receives live ABR video streams or any other type of media files including VoD, documents and data files over multicast streams and publish the content over a built-in web server. The Q-Stream™ Gateway features a LAN port and a WLAN Access Point to stream the content to mobile devices directly or through a companion Q-Stream™ Edge server when a larger number of end users’ mobile devices shall be supported at the same time.
In addition, the Q-Stream™ Gateway can decode the live mABR TV streams and display over a TV screen using its HDMI and analogue A/V ports. The Q-Stream™ Gateway features a USB2.0 port for connecting an optional local storage.
Main features and benefits:
- Access free-to-air satellite mABR TV streams
- Built-in dual band Wi-Fi software Access Point (Optional)
- Local storage over USB 2.0 port
- DVB-S2X, DVB-NIP compatibility
- Reception of mABR video streams, VOD and generic data files over GSE HEM or DVB-MPE transport stream
- Content distribution to connected devices over LAN/WLAN
- Scalable distribution to a large number of connected devices using a Q-Stream™ Edge server
- Available as SDK for integration into 3rd-party mobile apps and STBs

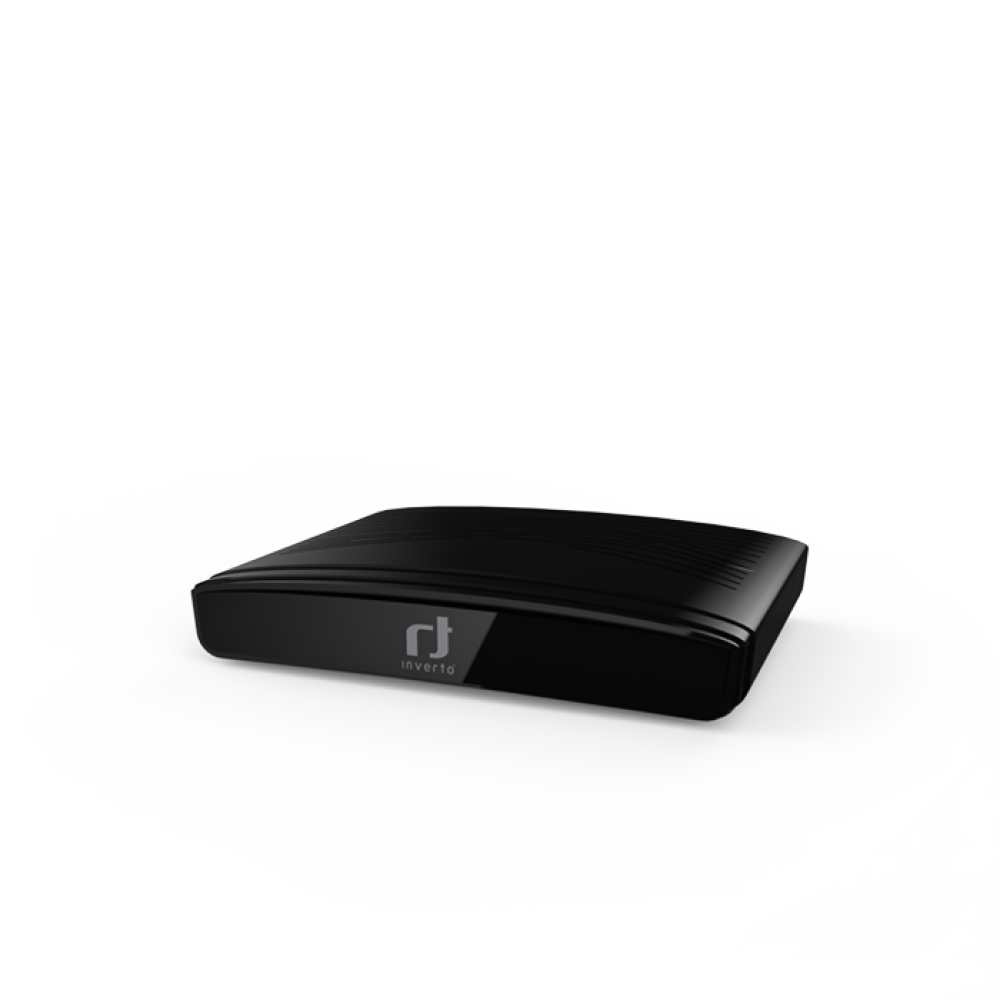

*Product image is for illustration purpose, actual product may look different depending on availability.
Technical specifications
Technical specifications
| SoC | Montage Symphony4, 2-core Cortex-A7 (ARM) 32-bit SoC, up to 1.2GHz |
| Decoding | HEVC/H.264/H.263/MPEG-4/MPEG-2/AVS/AVS+/VC1/VP8/VP9 HD decoding |
| HEVC Main Profile@Level 4.1 and Main 10 Profile @L4.1, High tier, VP8 2K@30fps, VP9 2K@60fps profile 0 and profile 2, MPEG2 MP@ML/HL | |
| DDR | 512 MB DDR3 |
| USB | USB 2.0 (for software updates) |
| Wi-Fi (Optional) |
2.4 GHz and 5.0 GHz IEEE 802.1 b/g/n/ac wireless LAN. |
| LAN | 10/100 Mbps |
| Satellite input | 1x DVB-S/S2/S2X front end, female F-connector, 950-2150 MHz |
| Satellite Symbol Rate | 1-45 Ms |
| Satellite Input Level | -25 to -65 dBm |
| LNB control | 13/18V + 0/22kHz, DiSEqC1.x, Unicable/dCSS EN50494, EN50607 |
| Display | HDMI (analog A/V jack port optional) |
| Power | 12VDC, 1.5A max. |
| File formats |
ABR files - Apple HLS, MPEG-DASH, CMAF |
| IP Protocols | HTTP, HTTPS, Multicast, Unicast, RTP, RTSP, RTMP, FLUTE, DVB-HB |
| DVB Transport Stream protocols | GSE HEM, DVB-MPE |
| Containers | MPEG TS, MP4, RAW RTP H.264/AAC/OPUS, FLV |
| Optional design spin offs | 1x LTE modem with integrated SIM reader for internet connectivity (different PCB version) |
| 1x DVB-T2 receiver for free-to-air digital TV (redesign required). | |
| Local storage management over USB (integration with 3rd party software may be required depending on customer requirements) |
