Conceived to address the unique needs of hotels, schools, hospitals, MDUs and broadcast facilities, airScreen tality™ offers the flexibility, reliability and features required to deploy a secure CATV and/or IPTV solution simply, quickly and at an affordable budget.
Compact & Powerful
The convenient 1RU package can host up to 6 hot-swappable modules to address the full range of functionalities required to deliver video over coax or IP networks including receiving, de-scrambling, encoding, multiplexing, rescrambling and modulating a transport stream over QAM, OFDM or IP.
Reliable & Energy efficient
airScreen tality™ boasts a compact form factor and an energy efficient system design. A built-in service level monitoring and with the optional dual power supply guarantee a non-stop 24/7 operation. Consequently, airScreen tality™ is an environmental, reliable and space saving design to keep your OPEX low for years to come.

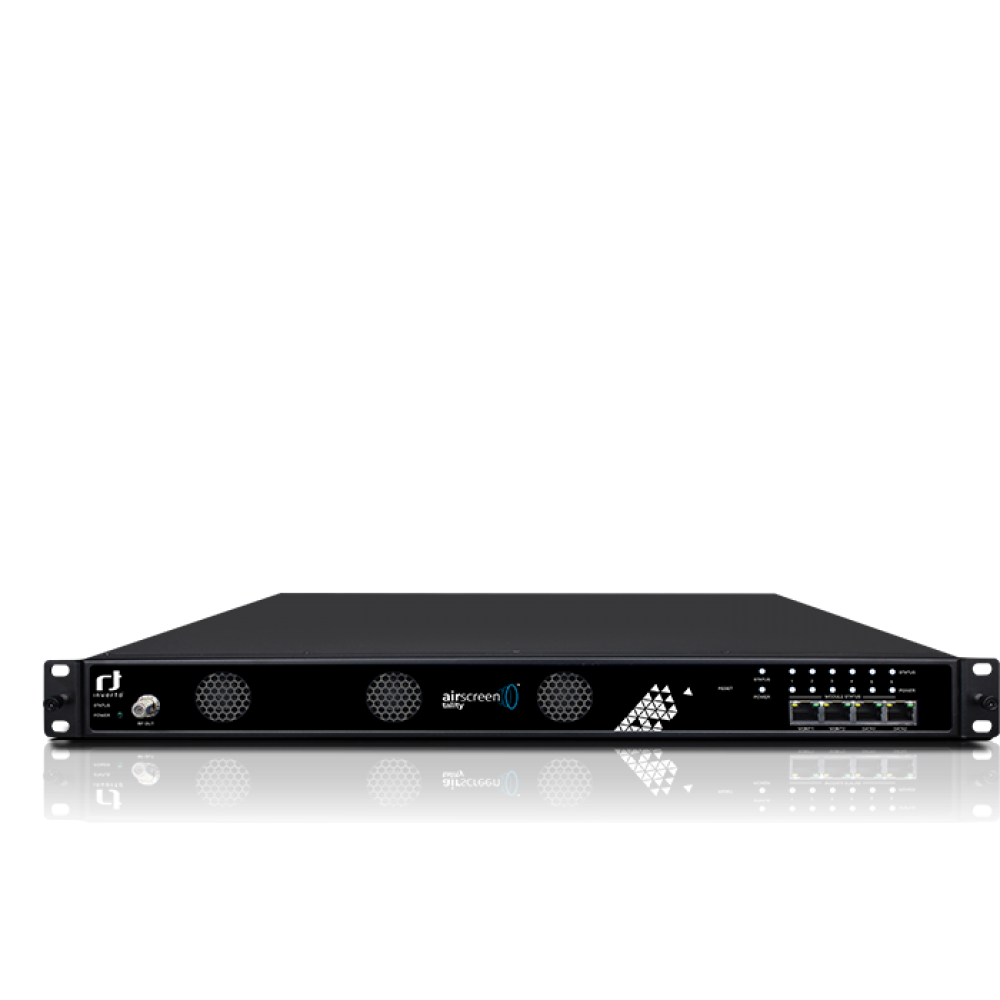

airScreen tality™ 1RU
The airScreen tality™ 1RU is a perfect choice for smaller scale MATV/CATV/IPTV deployments requiring secure, low power, cost-effective and reliable distribution of video with a simple and easy to use centralized management.
airScreen tality™ 1RU can receive signals from several sources as depicted above, descramble encrypted programs utilizing CI CAMs, multiplex them into new transport streams and output as QAM/OFDM modulated signals or IPTV streaming (TS over IP) over its built-in GbE interface. Utilizing a unique CAS implementation based on XCrypt’s CI-based CAMCAS solution, the programs can be re-encrypted on real-time basis and delivered to the rooms with an end-to-end studio-grade security.
CAMCAS encrypted programs can be decoded by a common XCrypt-embedded STB or with a CI+ XCrypt CAM inserted in the TV set. Deployments over IP networks require the STB or TV set to provide an IP interface. Free-to-view non-encrypted programs can be streamed over IP (UDP/RTP) to users’ PC or mobile devices using supporting player applications.
airScreen tality™ 1RU supports two different power supply versions, both with or without dual power supplies in a compact 1RU chassis, saving space and operating costs. 200 W single power supply chassis’ can optional contain a 8 CH
adjacent QAM/OFDM/ 8VSB/ISDB-T modulation module at front panel.
Detailed information about this product and the available modules can be found in the PDF file for download.
Product Features:
|
Reliability Features:
|
airScreen tality™ 1RU
The airScreen tality™ 1RU is a perfect choice for smaller scale MATV/CATV/IPTV deployments requiring secure, low power, cost-effective and reliable distribution of video with a simple and easy to use centralized management.
airScreen tality™ 1RU can receive signals from several sources as depicted above, descramble encrypted programs utilizing CI CAMs, multiplex them into new transport streams and output as QAM/OFDM modulated signals or IPTV streaming (TS over IP) over its built-in GbE interface. Utilizing a unique CAS implementation based on XCrypt’s CI-based CAMCAS solution, the programs can be re-encrypted on real-time basis and delivered to the rooms with an end-to-end studio-grade security.
CAMCAS encrypted programs can be decoded by a common XCrypt-embedded STB or with a CI+ XCrypt CAM inserted in the TV set. Deployments over IP networks require the STB or TV set to provide an IP interface. Free-to-view non-encrypted programs can be streamed over IP (UDP/RTP) to users’ PC or mobile devices using supporting player applications.
airScreen tality™ 1RU supports two different power supply versions, both with or without dual power supplies in a compact 1RU chassis, saving space and operating costs. 200 W single power supply chassis’ can optional contain a 8 CH
adjacent QAM/OFDM/ 8VSB/ISDB-T modulation module at front panel.
Chassis 6 hot-swappable slot Service level multiplexing 4 x Gigabit RJ45 (embedded): MPEG TS over UDP/RTT SPTS/MPTS Max. 120 inputs and 120 outputs Optional: Dual power supplies 8 Ch adjacent QAM/OFDM/ 8VSB/ISDB-T modulation module at front panel (200 W chassis) |
Physical & Environment Input Voltage 100 VAC ~ 240 VAC Power 120 W Chassis dimension (W x H x D) (482.6 x 44.5 x 430) mm Operating temperature 0°C ~ 50°C Storage temperature -10°C ~ 70°C Operating Humidity <95% MTBF ≥100,000 h |
Detailed information about this product and the available modules can be found in the PDF file for download.
