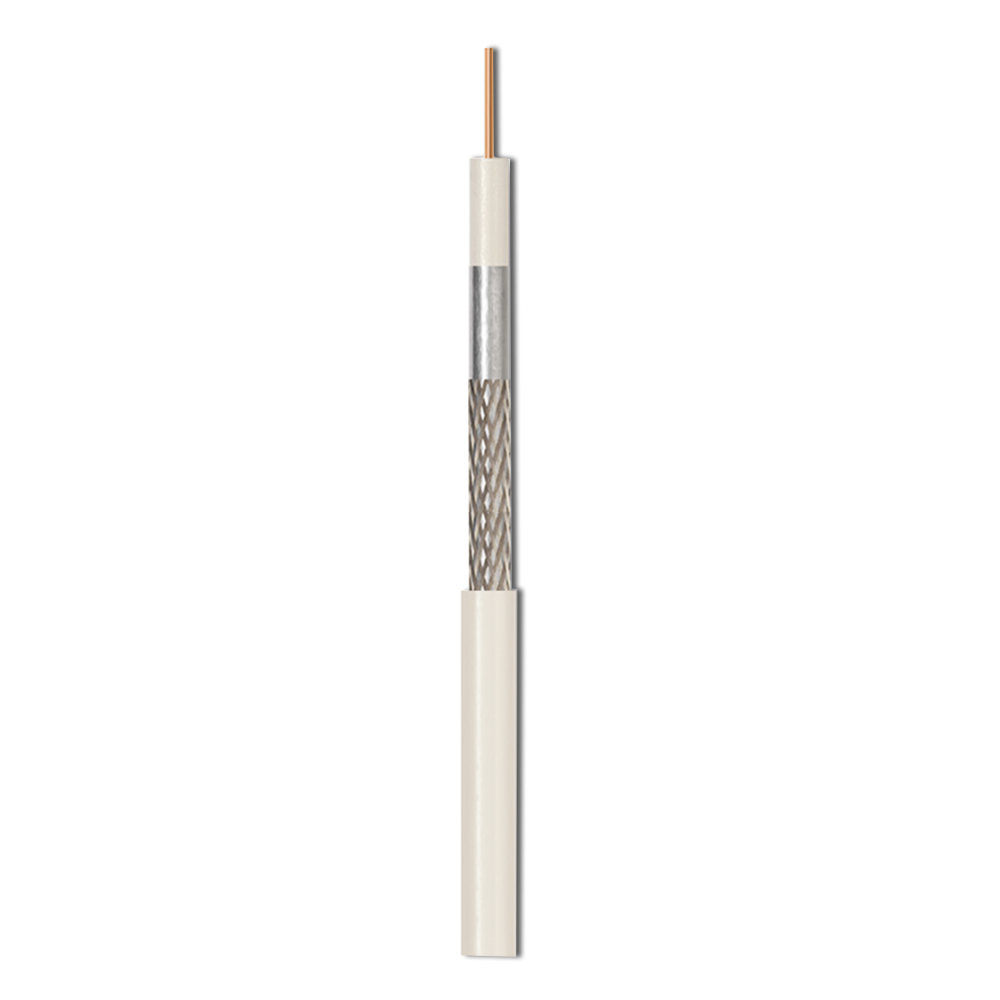

Professional cost-effective 75 Ohm double shielded coaxial cable (Class A) for Satellite and CATV signal distribution. This cable is manufactured according to the highest quality standards and has gas-injected FPE dielectric with a stable impedance and SRL characteristics and low through loss values. For indoor and outdoor use.
The construction of our coax cables can be customized and supplied with a color, length and/or packaging of your choice. Please contact us at sales@inverto.tv to receive a proposal for your specific requirements.
The construction of our coax cables can be customized and supplied with a color, length and/or packaging of your choice. Please contact us at sales@inverto.tv to receive a proposal for your specific requirements.
| Technical specifications | |
|---|---|
| Screening class | A |
| Applicable |
indoor/outdoor |
| Inner conductor |
|
| Material |
CCS |
| Diameter ᴓ [mm] |
1.02 |
|
|
|
| Dielectric |
|
| Material |
Foamed PE |
| Diameter ᴓ [mm] |
4.57 |
|
|
|
| 1st shielding |
|
| Material |
Bonded Al foil |
|
|
|
| 2nd shielding (braid) |
|
| Material |
Al |
| Braid coverage [%] |
70 |
|
|
|
| Outer sheath |
|
| Material |
PVC |
| Sheath diameter ᴓ [mm] |
6.9 |
| Sheath colour |
White |
| RoHS complaint |
yes |
| Characteristics |
UV protected, footage marker every meter |
|
|
|
| Electrical data |
|
| Impedance [Ω] |
75 ±2 |
| Capacitance [pF/m] |
52 ±2 |
| Velocity rate [%] |
>85 |
| DC resistance centre conductor [Ω/km] |
98 |
| DC resistance outer conductor [Ω/km] |
37 |
|
|
|
| Attenuation [dB/100m] at 20⁰C @ |
|
| 50 MHz |
4.5 |
| 200 MHz |
9 |
| 950 MHz |
21 |
| 2050 MHz |
30 |
| 2400 MHz |
32 |
|
|
|
| Structural return loss [dB] @ |
|
| 5 MHz ~ 470 MHz |
>22 |
| > 470 MHz ~ 1000 MHz |
>22 |
| > 1000 MHz ~ 2000 MHz |
>20 |
| > 2000 MHz ~ 3000 MHz |
>20 |
|
|
|
| Screening attenuation [dB] @ |
|
| 30 MHz ~ 1000 MHz |
>80 |
| > 1000 MHz ~ 2000 MHz |
>75 |
| > 2000 MHz ~ 3000 MHz |
>65 |
|
|
|
| Transfer impedance [mΩ/m] @ |
|
| 10 MHz ~ 30 MHz |
≤ 16 |
|
|
|
| Mechanical data |
|
| Operating temperature |
-30⁰C ~ +70⁰C |
| Footage markers per meter |
1 |
| Available packages and colors: | 500 feet wooden reel (white) |
