Ultra premium 75 Ohm triple shielded coaxial cable with copper conductor for broadband networks HFC/CATV signal distribution. This cable is manufactured according highest quality standards and has PE gas injected dielectric with a stable impedance and fulfils in all aspects screening class A+ requirements. Applicable for indoor and outdoor use.







Available packages and colors:

5542 High performance digital coaxial cable RG-6, copper conductor, triple shielded, class A+, white, 50m roll IDLU-CRG6O4-PTWO50-BOH
5543 High performance digital coaxial cable RG-6, copper conductor, triple shielded, class A+, black, 50m roll IDLU-CRG6O4-PTBO50-BOH
5544 High performance digital coaxial cable RG-6, copper conductor, triple shielded, class A+, white, 100m box IDLU-CRG6O4-PTW100-ROH
5545 High performance digital coaxial cable RG-6, copper conductor, triple shielded, class A+, black, 100m box IDLU-CRG6O4-PTB100-ROH
5546 High performance digital coaxial cable RG-6, copper conductor, triple shielded, class A+, white, 250m reel IDLU-CRG6O4-PTW250-REH
5547 High performance digital coaxial cable RG-6, copper conductor, triple shielded, class A+, black, 250m reel IDLU-CRG6O4-PTB250-REH
5548 High performance digital coaxial cable RG-6, copper conductor, triple shielded, class A+, white, 305m reel IDLU-CRG6O4-PTW305-REH
5549 High performance digital coaxial cable RG-6, copper conductor, triple shielded, class A+, black, 305m reel IDLU-CRG6O4-PTB305-ROH

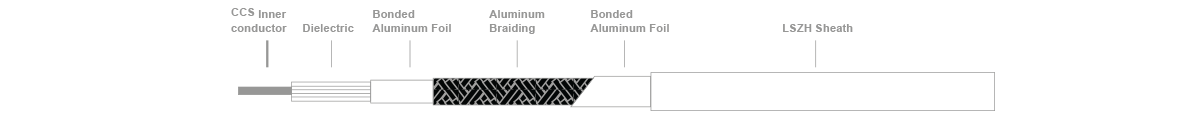

Technical specifications
Screening class A+
Applicable
indoor/outdoor

Inner conductor
Material
CU
Diameter ᴓ [mm]
1.02
Cladding conductivity [%]
-

Dielectric

Material
Cell PE
Diameter ᴓ [mm]
4.6

1st shielding

Material
PET/Al bonded
Coverage [%]
100

2nd shielding (braid)

Material
CuSn
Braid coverage [%]
72

3rd shielding

Material
APA foil

Outer sheath

Material
LSZH
Sheath diameter ᴓ [mm]
6.8
Sheath colour
black or white
RoHS complaint
yes
Characteristics
UV protected, fire retardant,
footage marker every meter

Electrical data

Impedance [Ω]
75 ±2
Capacitance [pF/m]
53 ±2
Velocity rate [%]
85
DC resistance centre conductor [Ω/km]
22
DC resistance outer conductor [Ω/km]
14
Loop resistance [Ω/km]
36
Sheath insulation voltage [kv]
3

Attenuation [dB/100m] at 20⁰C @

5 MHz
1.5
50 MHz
4
100 MHz
6
200 MHz
9
300 MHz
10
500 MHz
14
800 MHz
18
950 MHz
20
1750 MHz
28
2050 MHz
30
2400 MHz
33
3000 MHz
37
Structural return loss [dB] @

5 MHz ~ 470 MHz
> 28
> 470 MHz ~ 1000 MHz
> 26
> 1000 MHz ~ 2000 MHz
> 24
> 2000 MHz ~ 3000 MHz
> 22

Screening attenuation [dB] @

30 MHz ~ 1000 MHz
≥ 110
> 1000 MHz ~ 2000 MHz
≥ 110
> 2000 MHz ~ 3000 MHz
≥ 95

Transfer impedance [mΩ/m] @

10 MHz ~ 30 MHz
≤ 2.5

Sweep tested @

5 MHz ~ 3000 MHz
yes

Mechanical data

Operating temperature
-30⁰C ~ +70⁰C
Installation temperature
-10⁰C ~ +50⁰C
Bending radius (single/multiple) [mm]
35/70
Tensile strength [N]
110
Weight approx. [kg/km]
47
Compliant according
EN50117,
IEC61196,
Construction Product Regulations (CPR)
Footage markers per meter
1
