This power supply adapter is designed to power a single 4-output Unicable II™ multiswitch and connected Quattro LNB (or two Wideband LNBs) over the trunk lines or the DC input port. It features over current and short protection and ideal for single home/apartment installations.
Technical Specifications
| Input voltage Input frequency Output voltage Output current Output connector Cabel length Dimensions (l x d x w) Operating temperature Compliance |
100 VAC ~ 240 VAC 50 Hz/60 Hz 19 VDC 0.94 A max. F-type, male 1.5 m 70 mm x 48 mm x 60 mm 0 ⁰C ~ 40 °C Low Voltage Directive (2014/35/EU) Electromagnetic Compatibility Directive (2014/30/EU) Eco-Design Directive (2009/125/EC) |

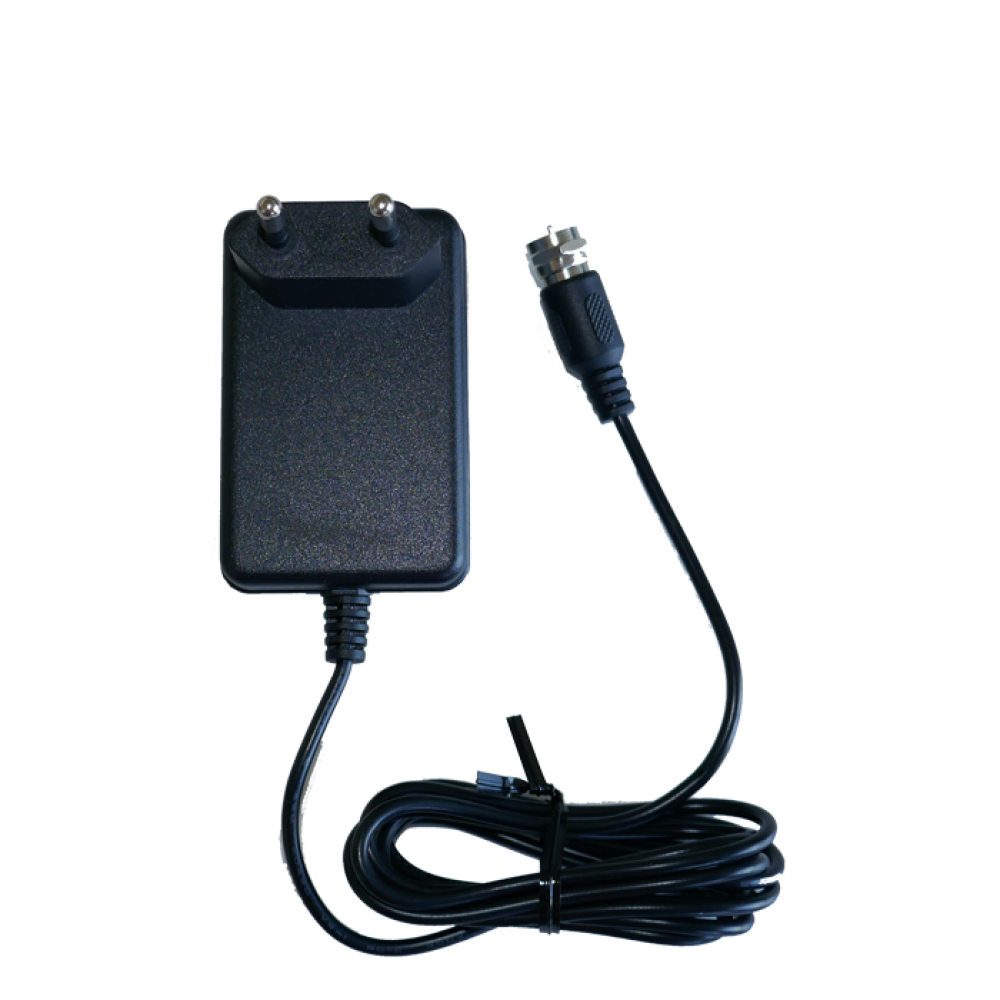

Images

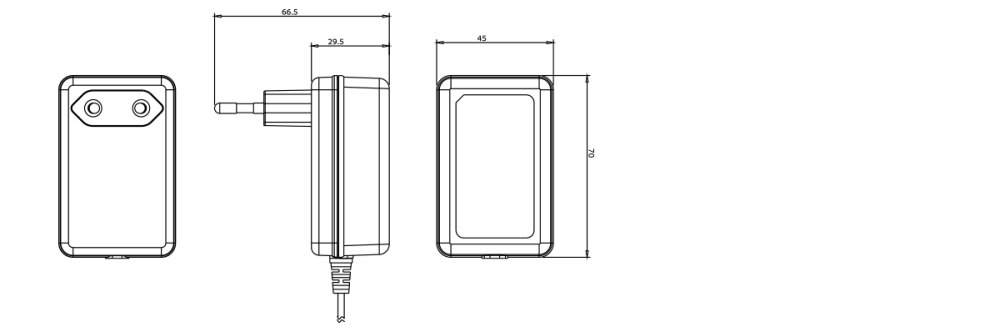

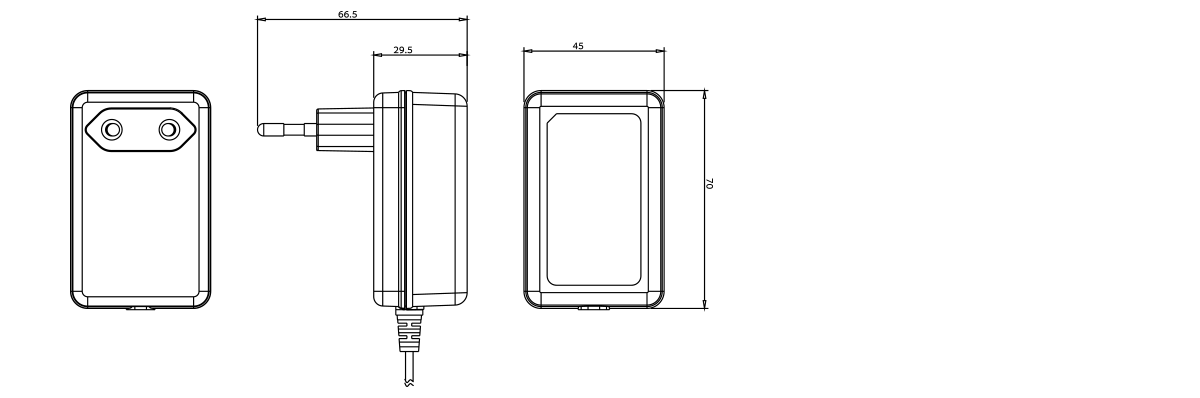

Drawings
